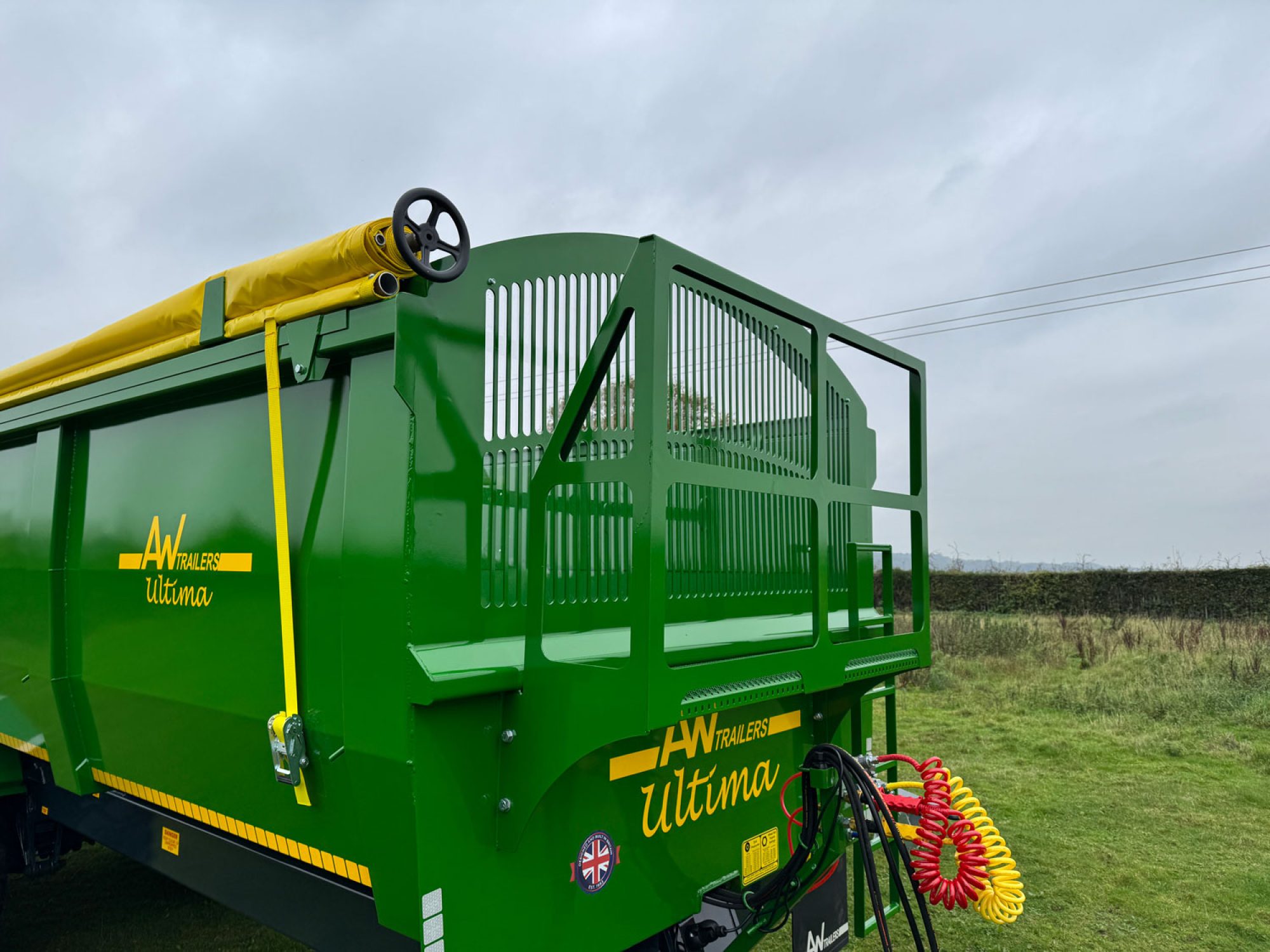

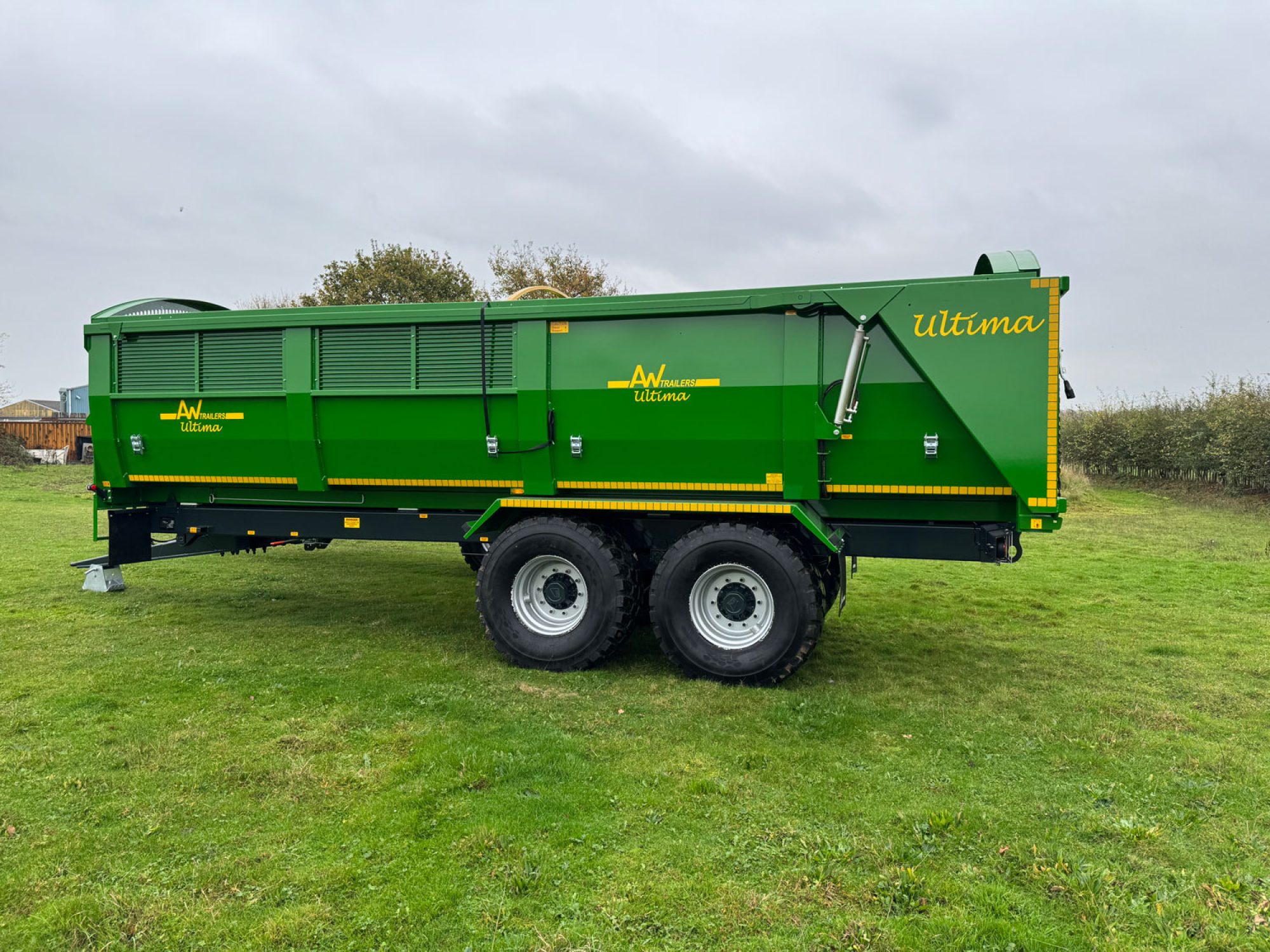

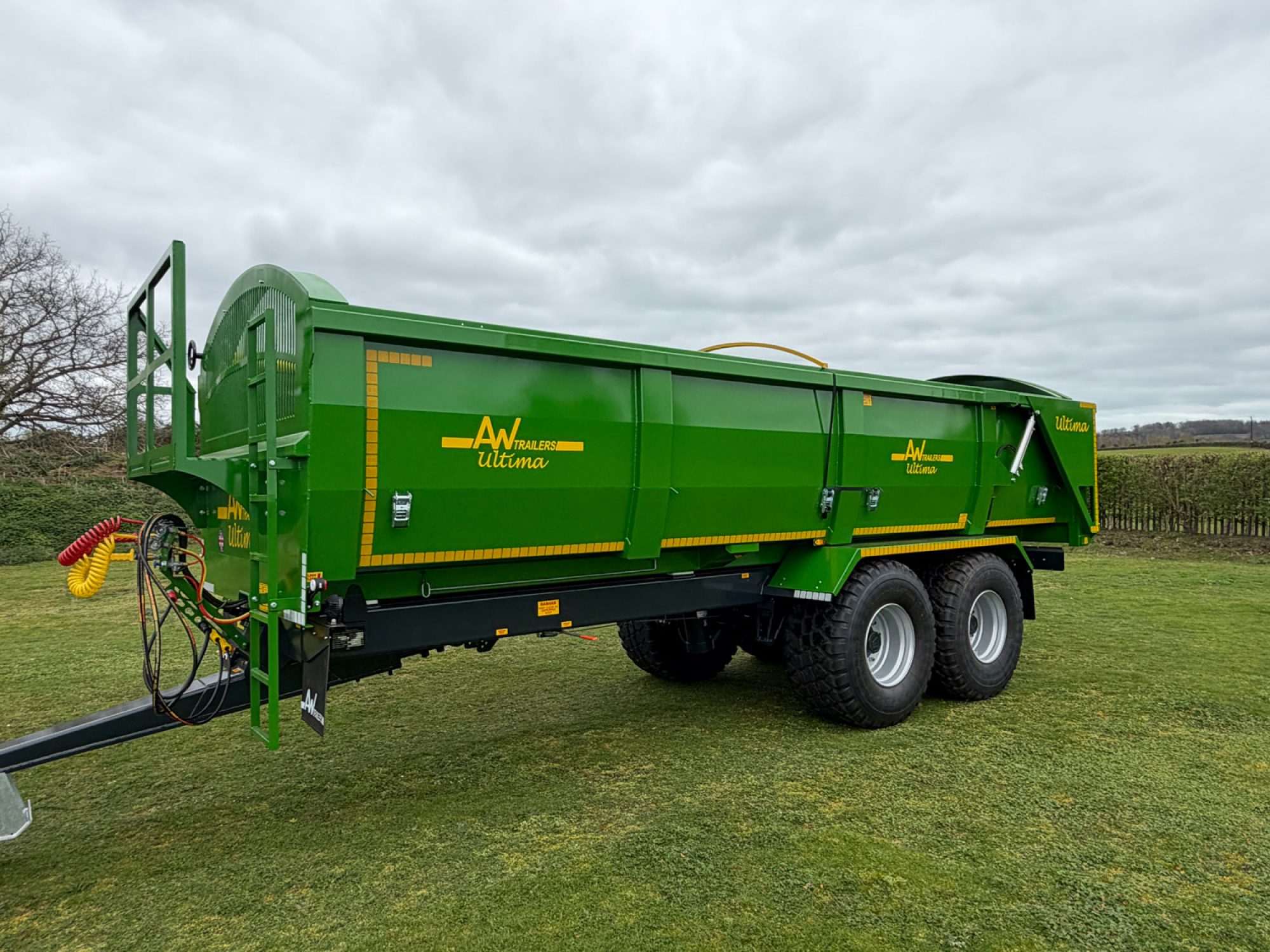

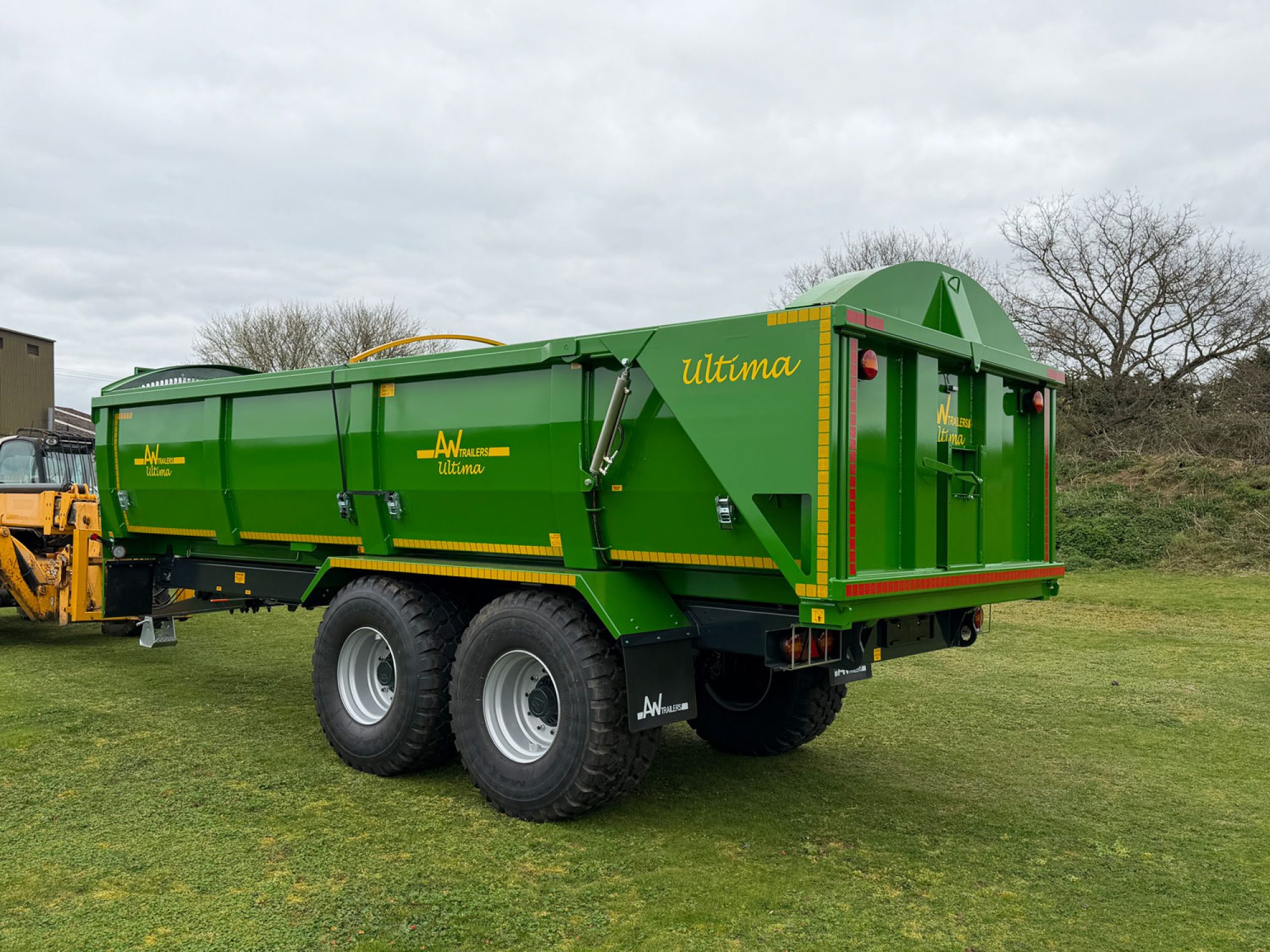

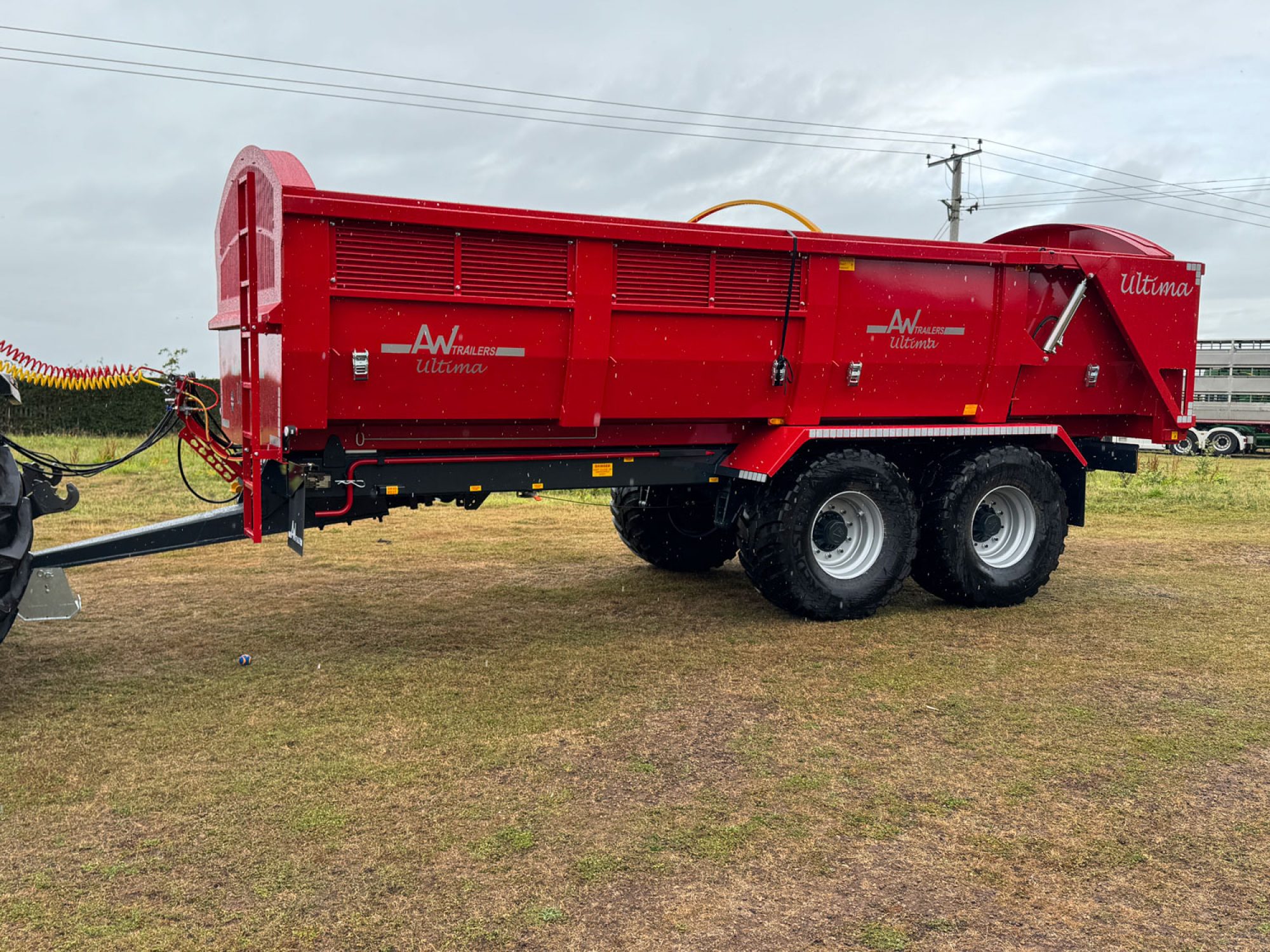

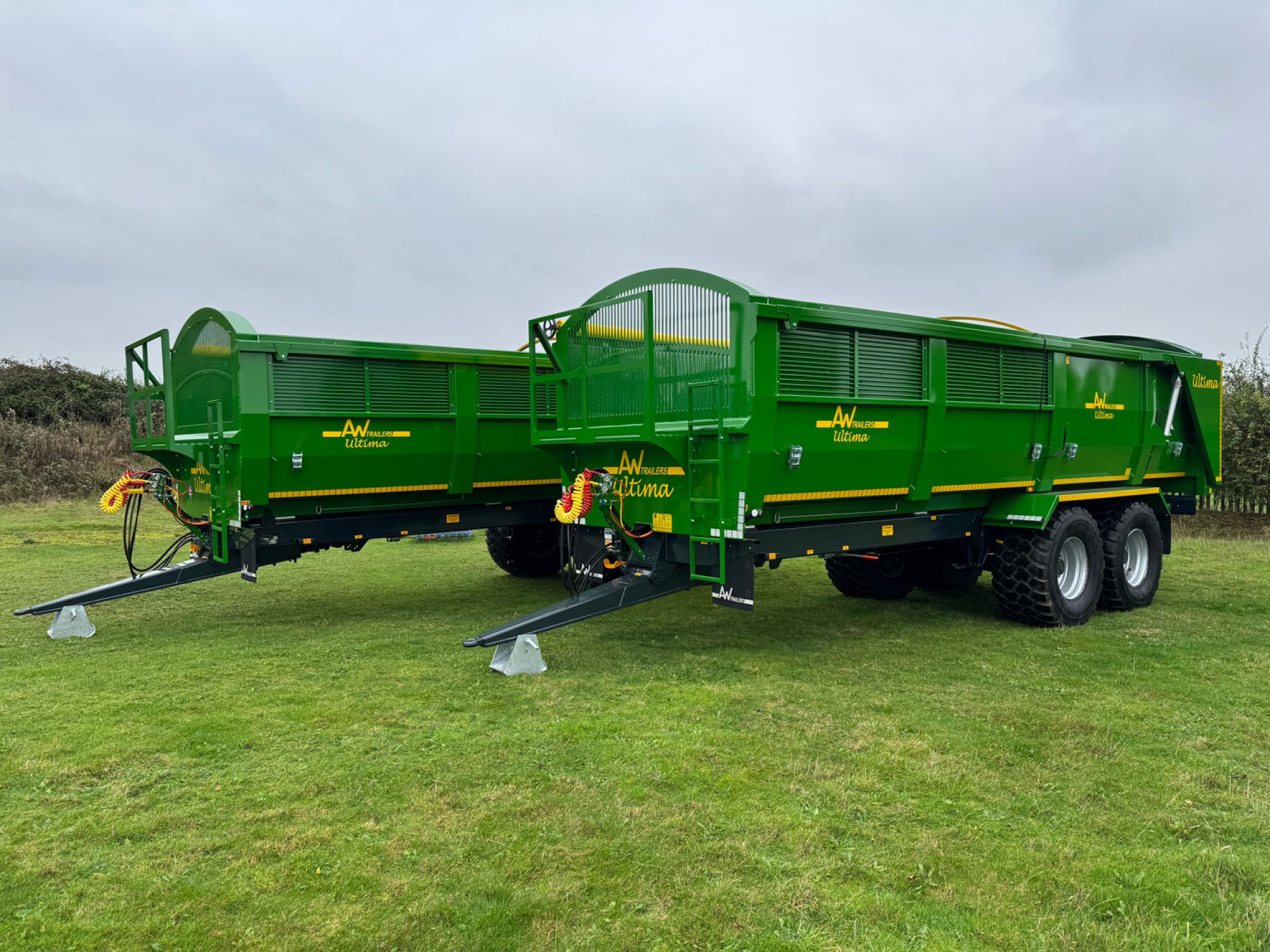

Ultima Potato & Root Trailers

The AW Ultima range of trailers is built to handle the toughest demands of modern farming, whether you’re transporting grain or root crops. Every trailer in the Ultima line combines strength and smart design: a sleeker, more robust body, wide side channels for added stability, and reinforced flooring that can withstand heavy loads day after day.

But the Ultima isn’t just about durability—it’s about versatility too. Optional silage sides make it easy to carry a variety of materials, while a rollover sheet provides protection when conditions get challenging. Whether you’re moving crops across fields or into storage, the Ultima adapts to your needs, delivering reliable performance season after season.

With the Ultima, you’re getting more than just a trailer—you’re getting a piece of equipment designed to make your farm work smoother, safer, and more efficient.

Hydraulic Brakes with load sensing, Ratchet handbrake, Sprung drawbar – multi position, multi leaf, Steel mudguards c/w Mudflaps, Commercial axles (420 x 180), Rear towing points, Number plate holder, Body Prop, Removable skid c/w holder, 560/60 R22.5 Flotation Tyres, Bulkhead couplings, 5mm thick floor & 4mm sides, Full width front window c/w polycarbonate screen, Tapered body, LED Front, side and rear lights, LED flashing beacon, Contractor hydraulic tailboard, Chrome rams, Inspection ladder, Fully shotblasted, 2 Pack Primer & Topcoat, Grey Chassis, Choice of body colour (Standard tractor range)

Chassis/Running Gear

Steering Axle, ABS (with commercial axles only), Rear Drawbar c/w Electrics, Rear Drawbar c/w Electrics & Hydraulic Brakes, Rear Drawbar c/w Electrics & Air Brakes, Euro Hitch, Air Suspension, Hydraulic Suspension, Hydraulic Jack

Body

Barn Doors, Grain Chute, Grain Sock, Side Window c/w Steel Slide, Manual Side to Side Rollover Sheet, Hydraulic Side to Side Rollover Sheet, Front/ Back Sheet/Net, Front Platform, Tailboard lock valve, Single Ram, Weigh Cell System

Lighting

Extra High-Level Lights, Extra Side Lights, Work Lights, Interior Lights, Hi-Viz, Reverse lights on a plunger switch

Misc

Mudflaps, Aluminium Loading Ramps, Side Crash Rails, Strap box

Ultima Potato & Root Trailers- Downloadable file

Ultima Potato & Root Specifications Table

Ultima 12T P&R Ultima 14T P&R Ultima 16T P&R Ultima 18T P&R
Length (Internal) 6100mm/20' 6700mm/22' 6700mm/22' 7300mm/24'
Width (internal) 2275mm/7'6" 2275mm7'6" 2275mm/7'6" 2275mm/7'6"
Body Height 1145mm/3'9" 1145mm/3'9" 1345mm/4'5" 1345mm/4'5"
Cubic Capacity 15.9m³/597ft³ 17.4³/619ft³ 20.5³/729ft³ 22.4³/795ft³
Axle Size 127mm Round 10 Stud (Tandem) 127mm Round 10 Stud (Tandem) 127mm Round 10 Stud (Tandem) 127mm Round 10 Stud (Tandem)
Brake Size 420 x 180 420 x 180 420 x 180 420 x 180
Wheel Track 2000mm/79" 2000mm/79" 2000mm/79" 2000mm/79"
Tyre Size 560/60R22.5 560/60R22.5 560/60R22.5 560/60R22.5
O/a Length 7645mm/25'1" 8245mm/27'1" 8245mm/27'1" 8870mm/29'1"
O/a Width 2475mm/8'2" 2475mm/8'2" 2475mm/8'2" 2475mm/8'2"
O/a Height 2620mm/8'7" 2575mm/8'5" 2775mm/9'1" 2775mm/9'1"
Max Tipped Height 6883mm/22'7" 7419mm/24'4" 7544mm/24'9" 7850mm/25'9"
Unladen Weight 5.3 Tonne Approx. 5.5 Tonne Approx. 5.7 Tonne Approx. 6.0 Tonne Approx.
