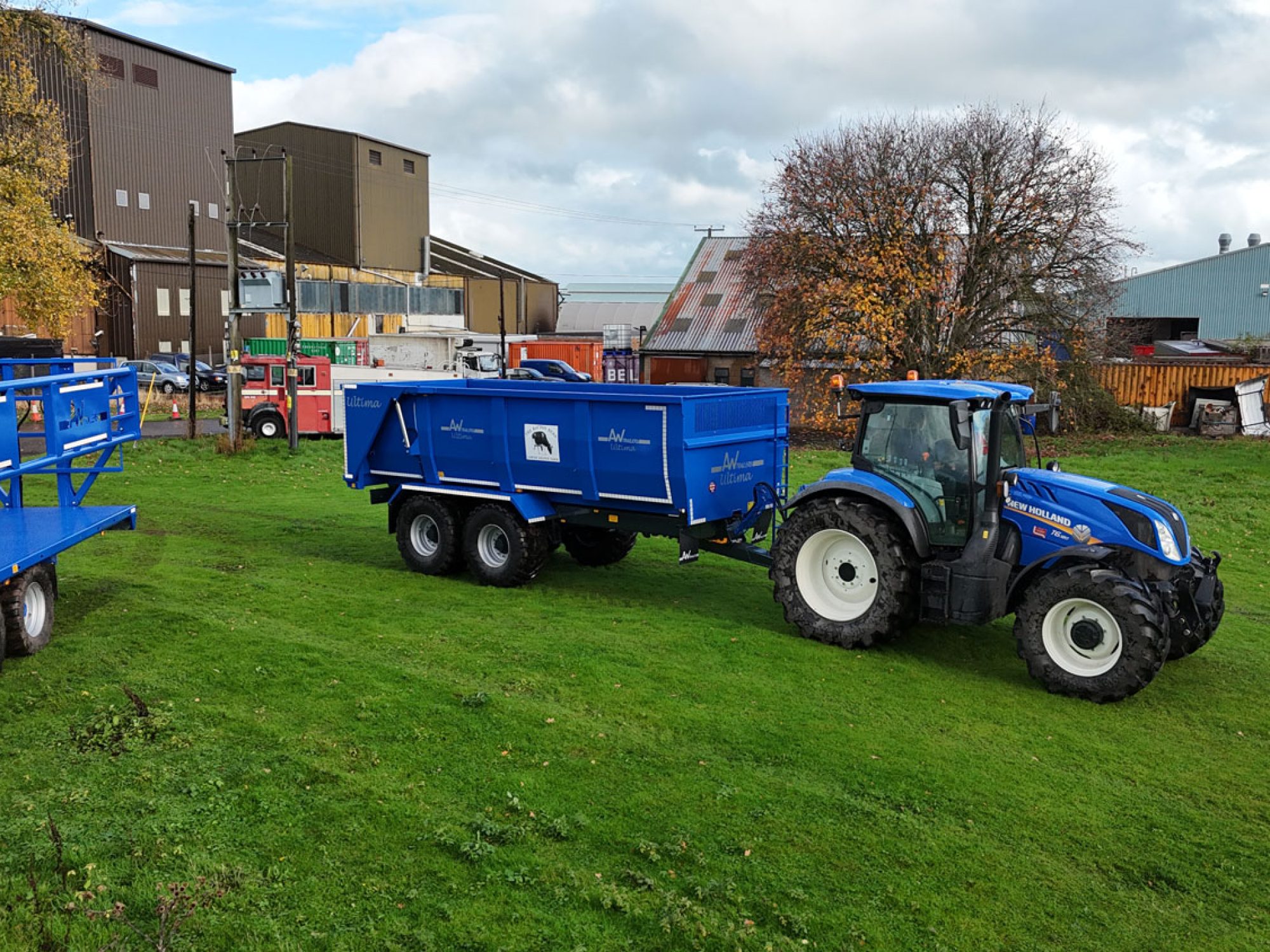

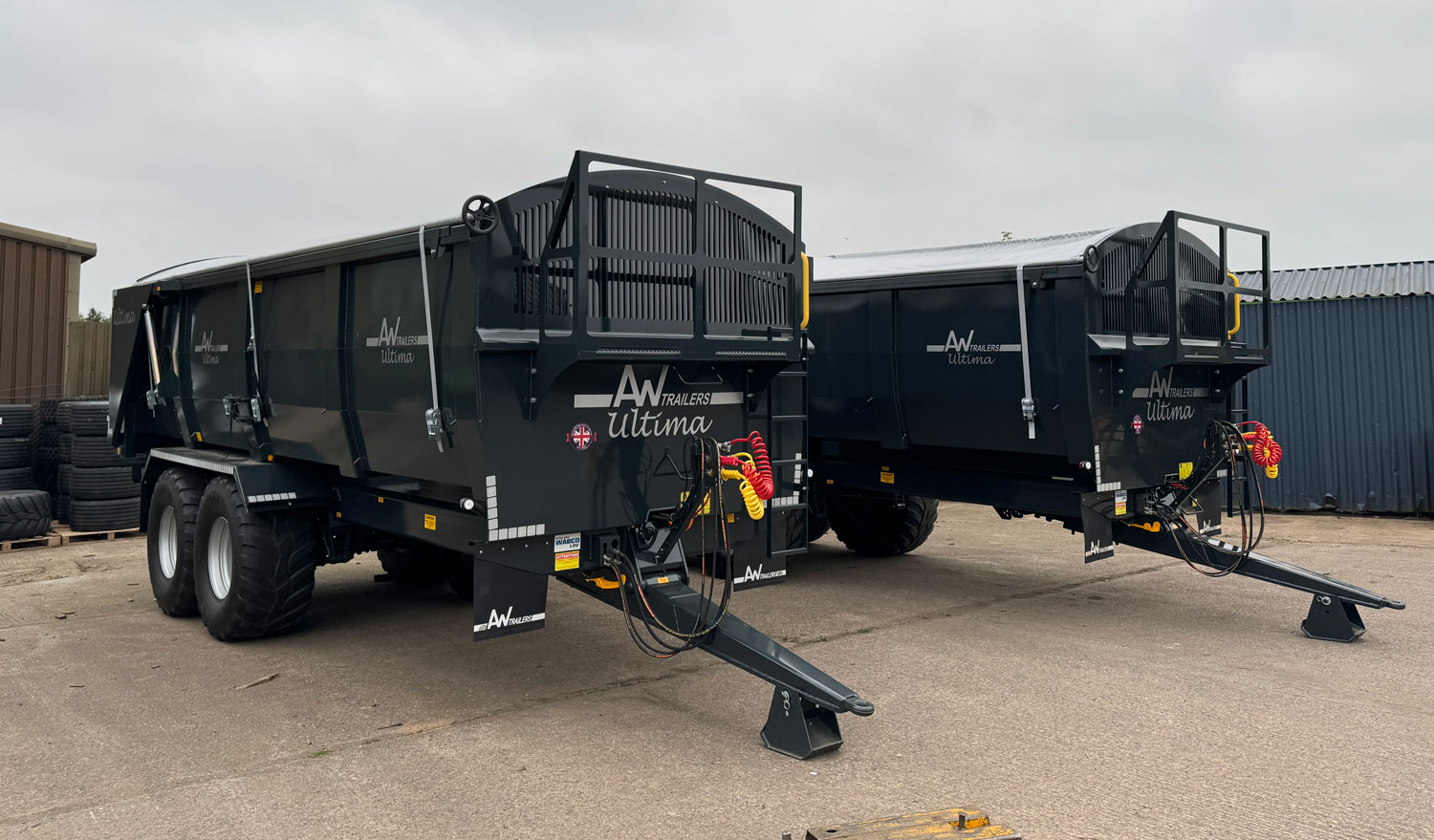

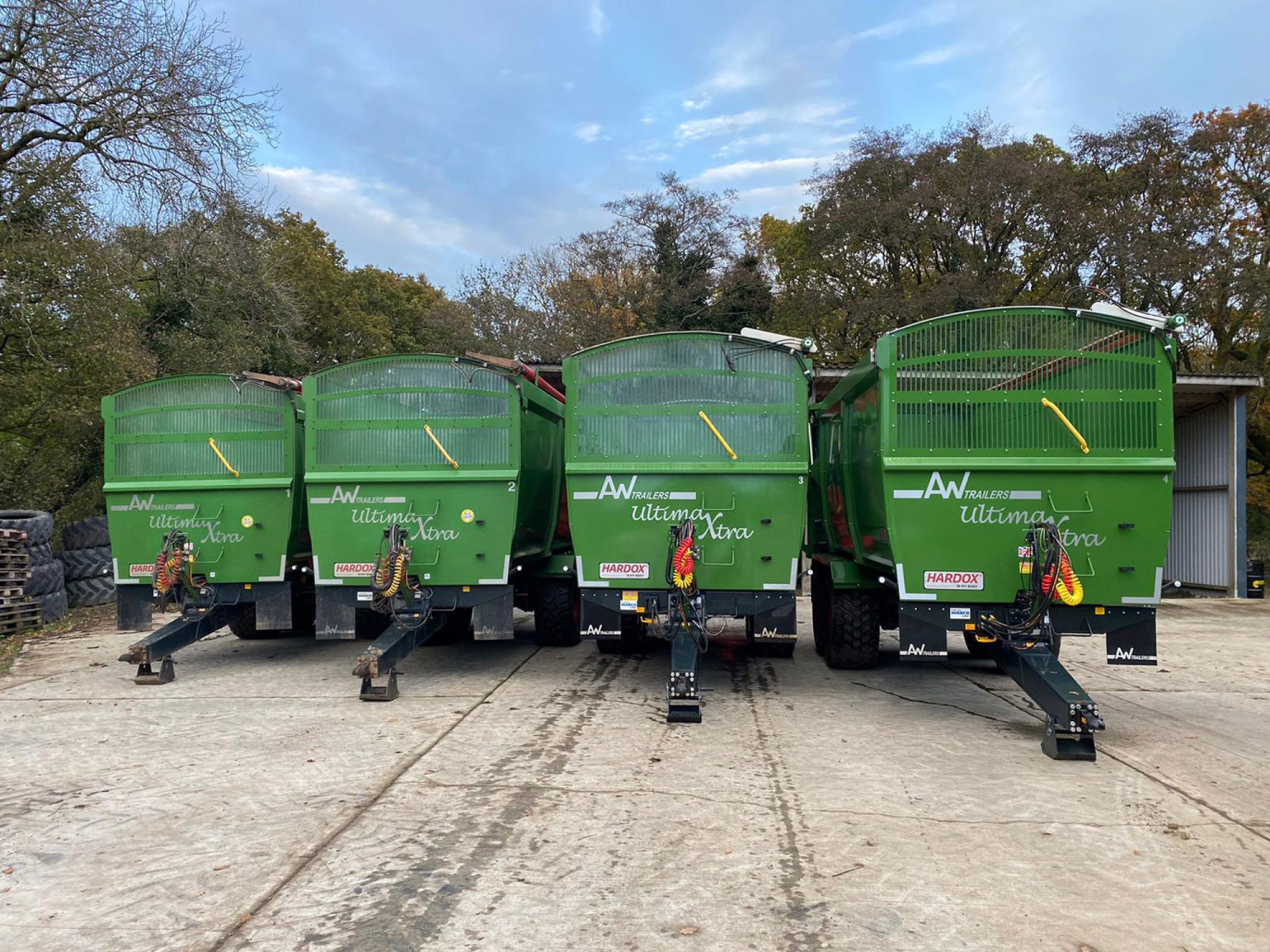

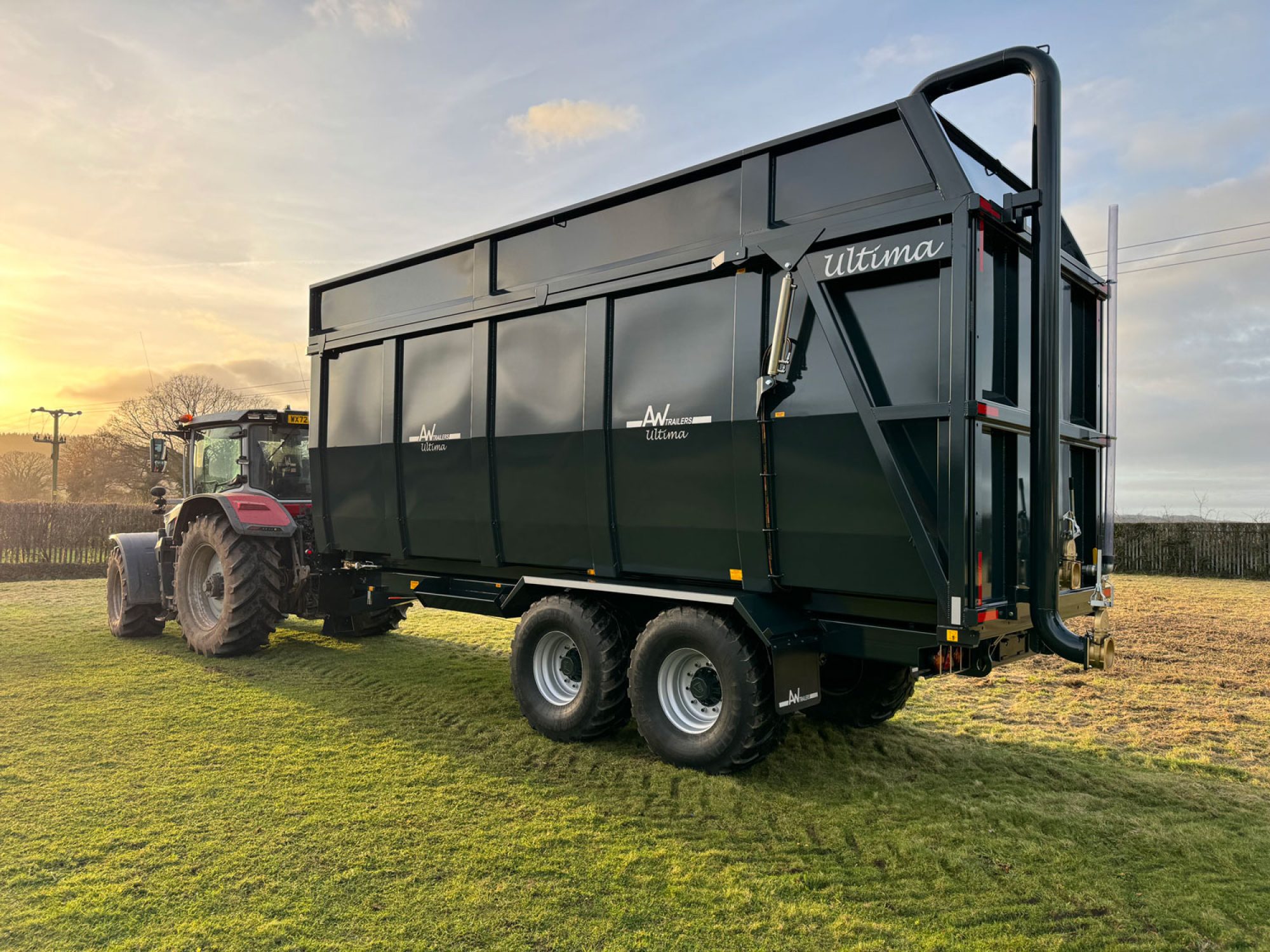

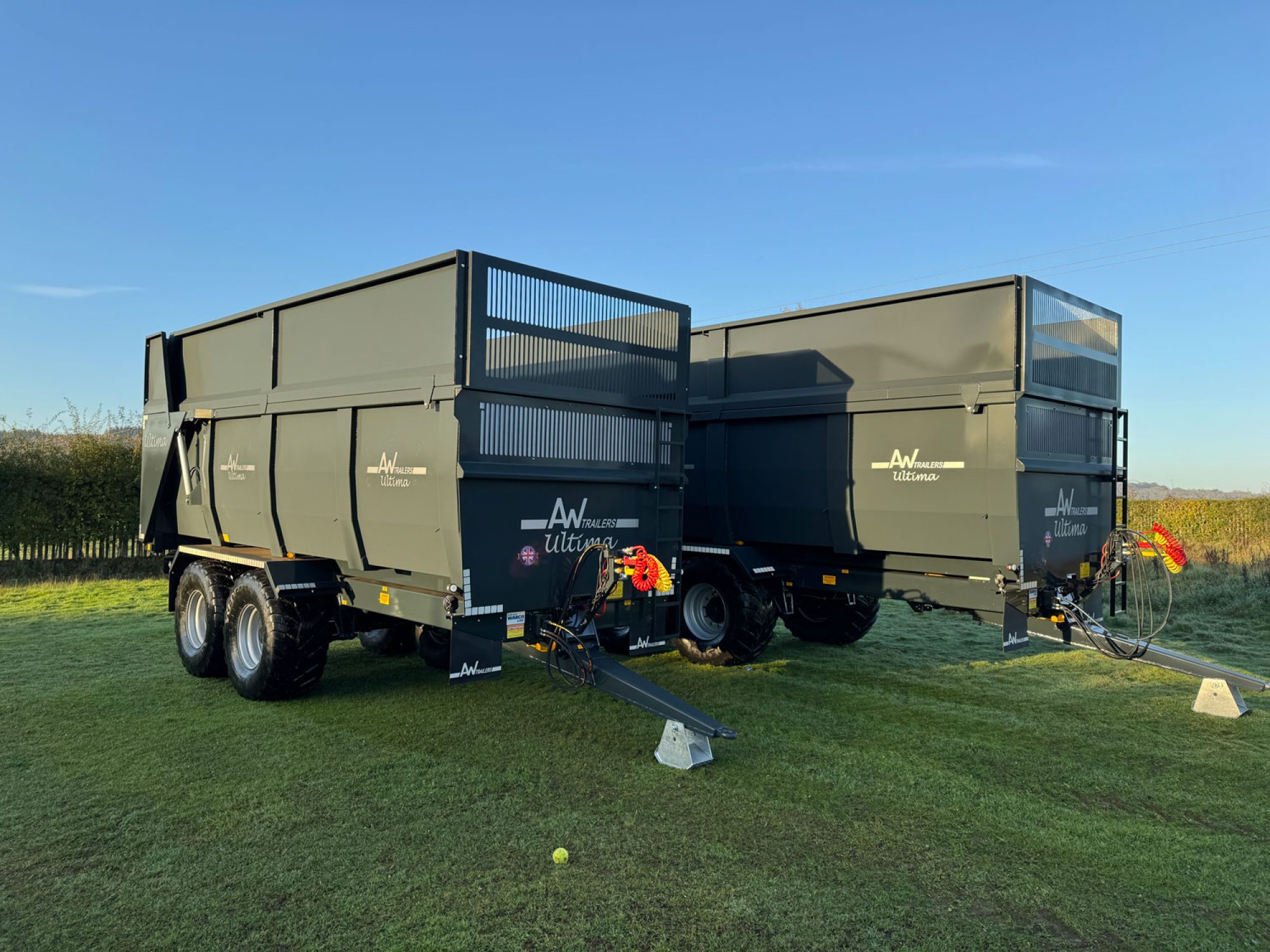

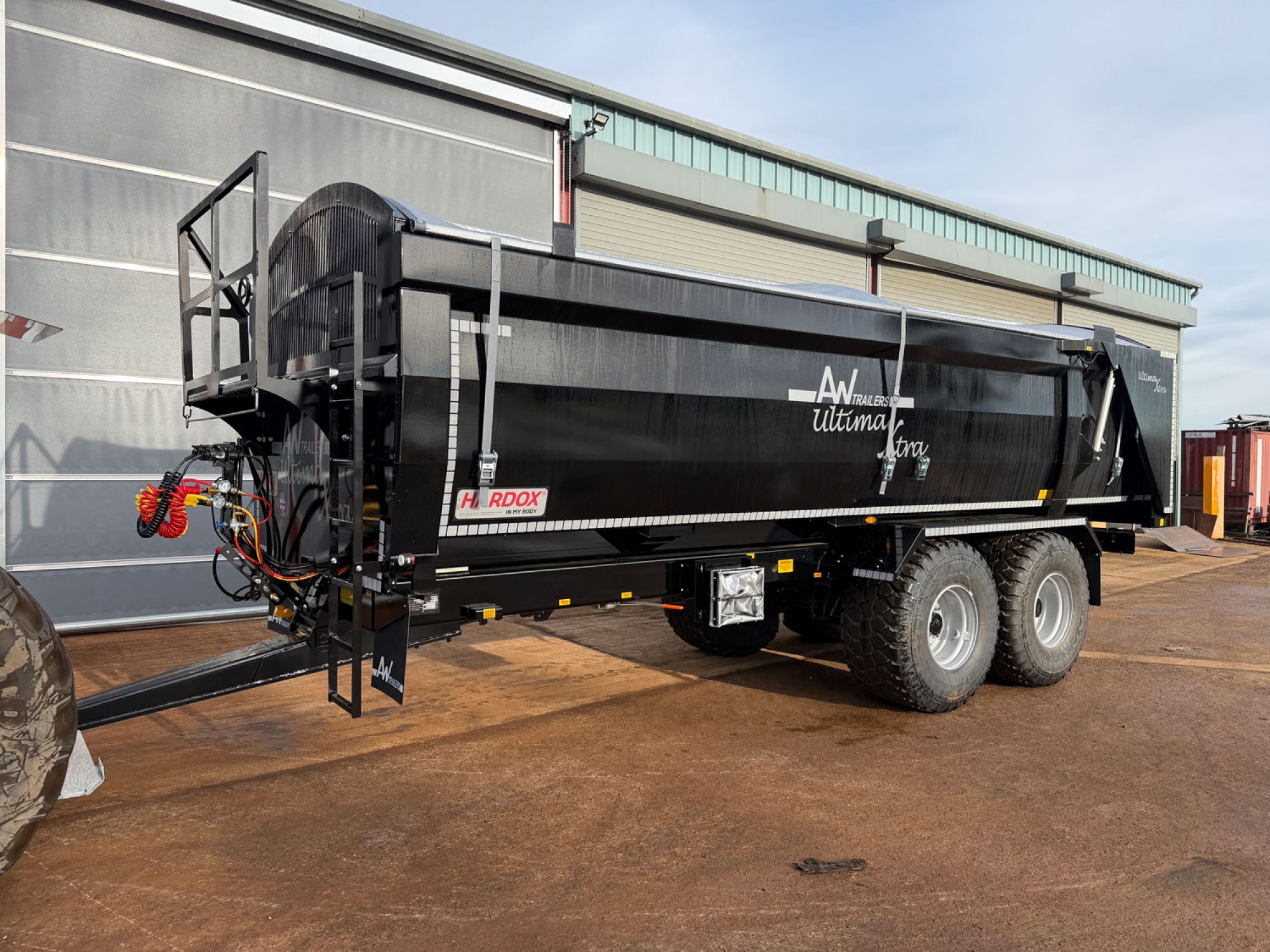

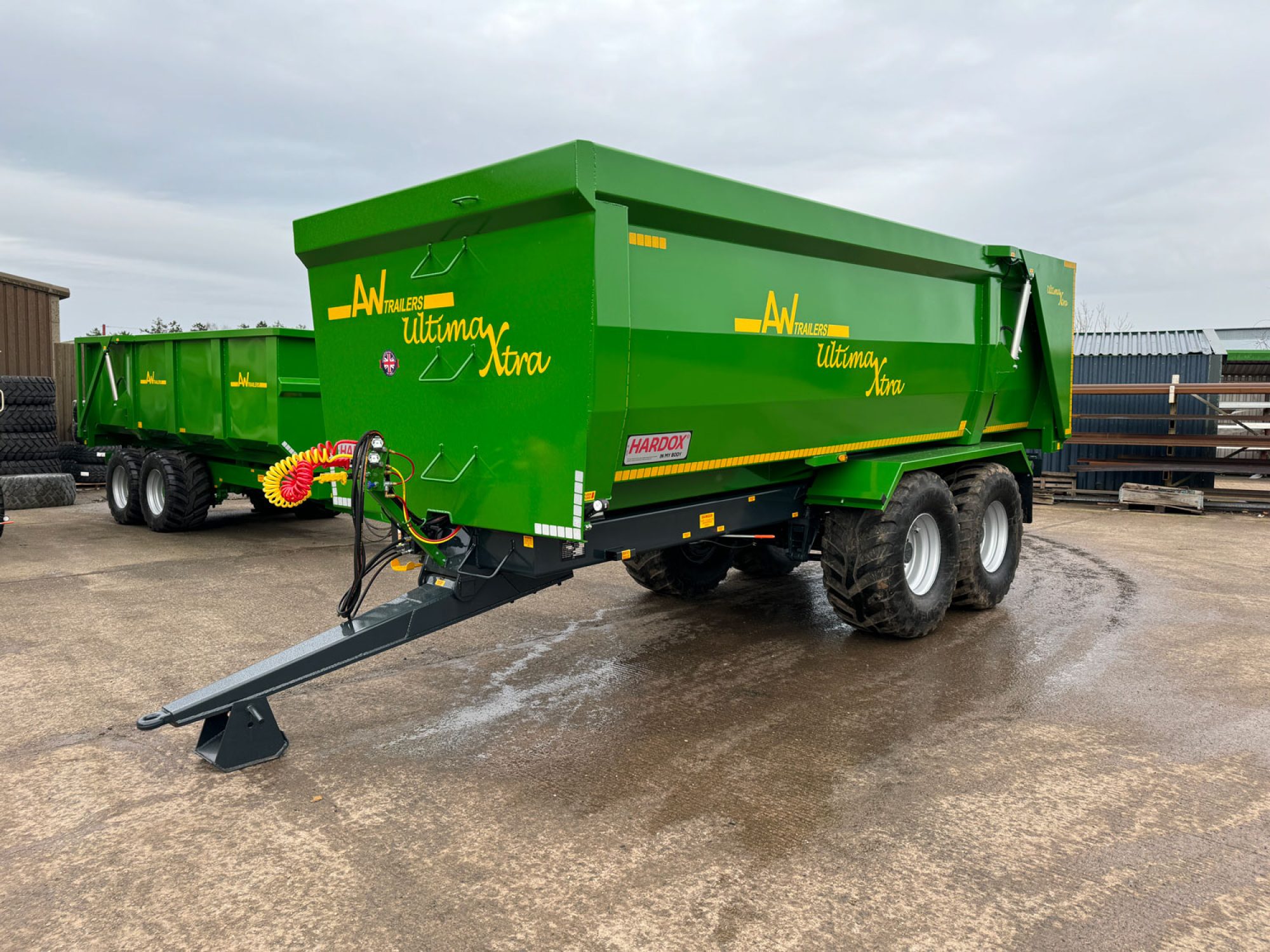

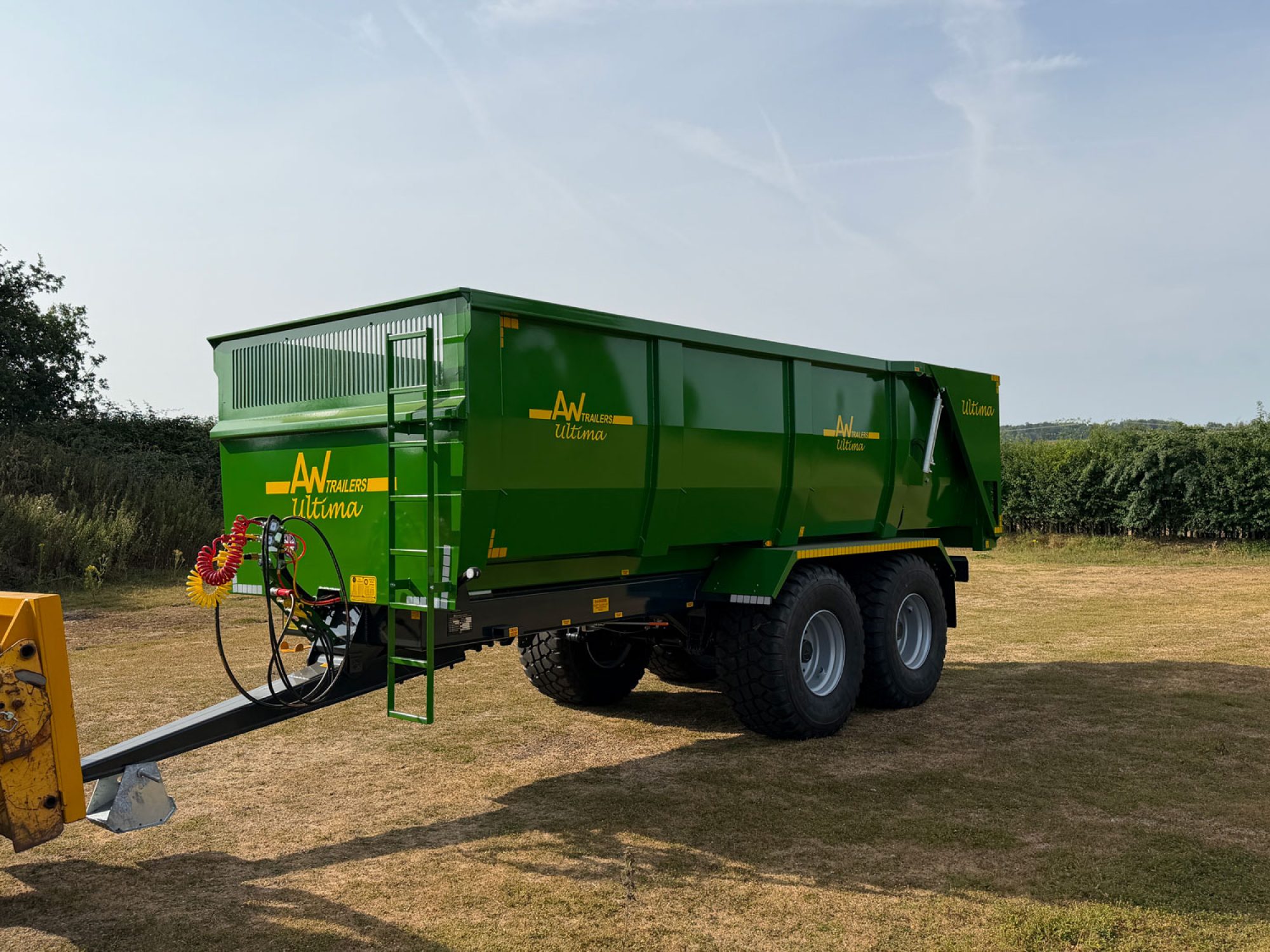

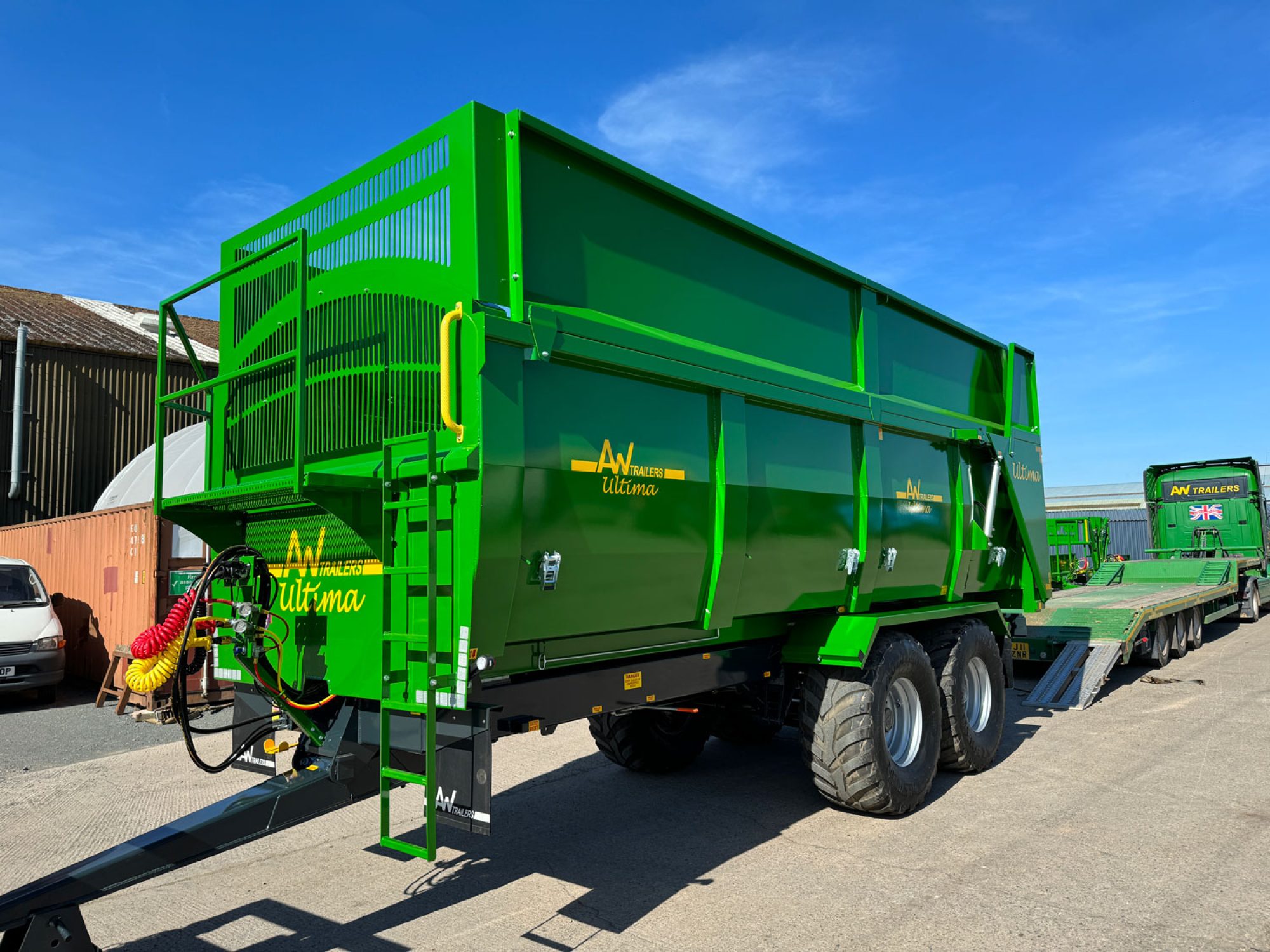

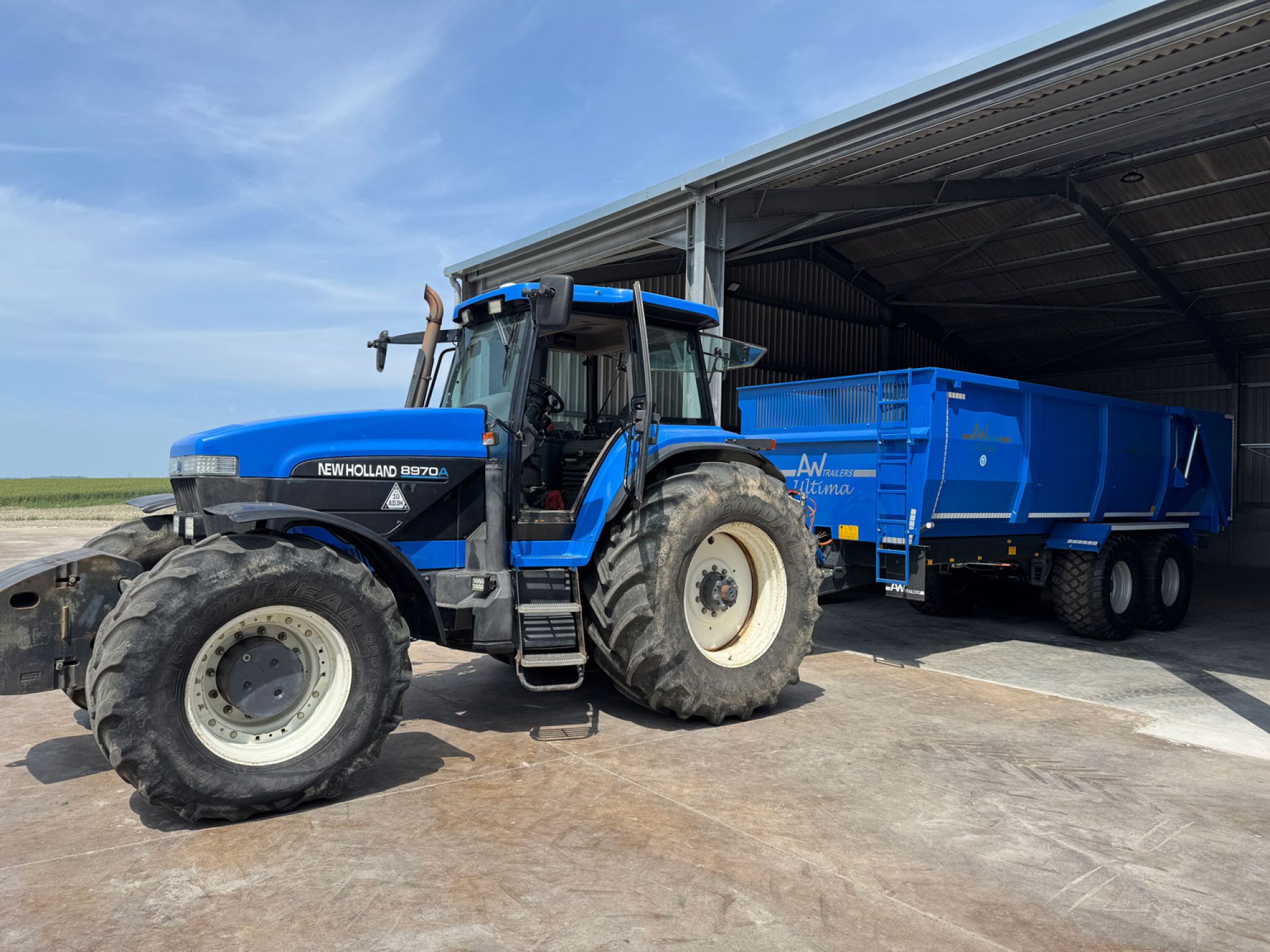

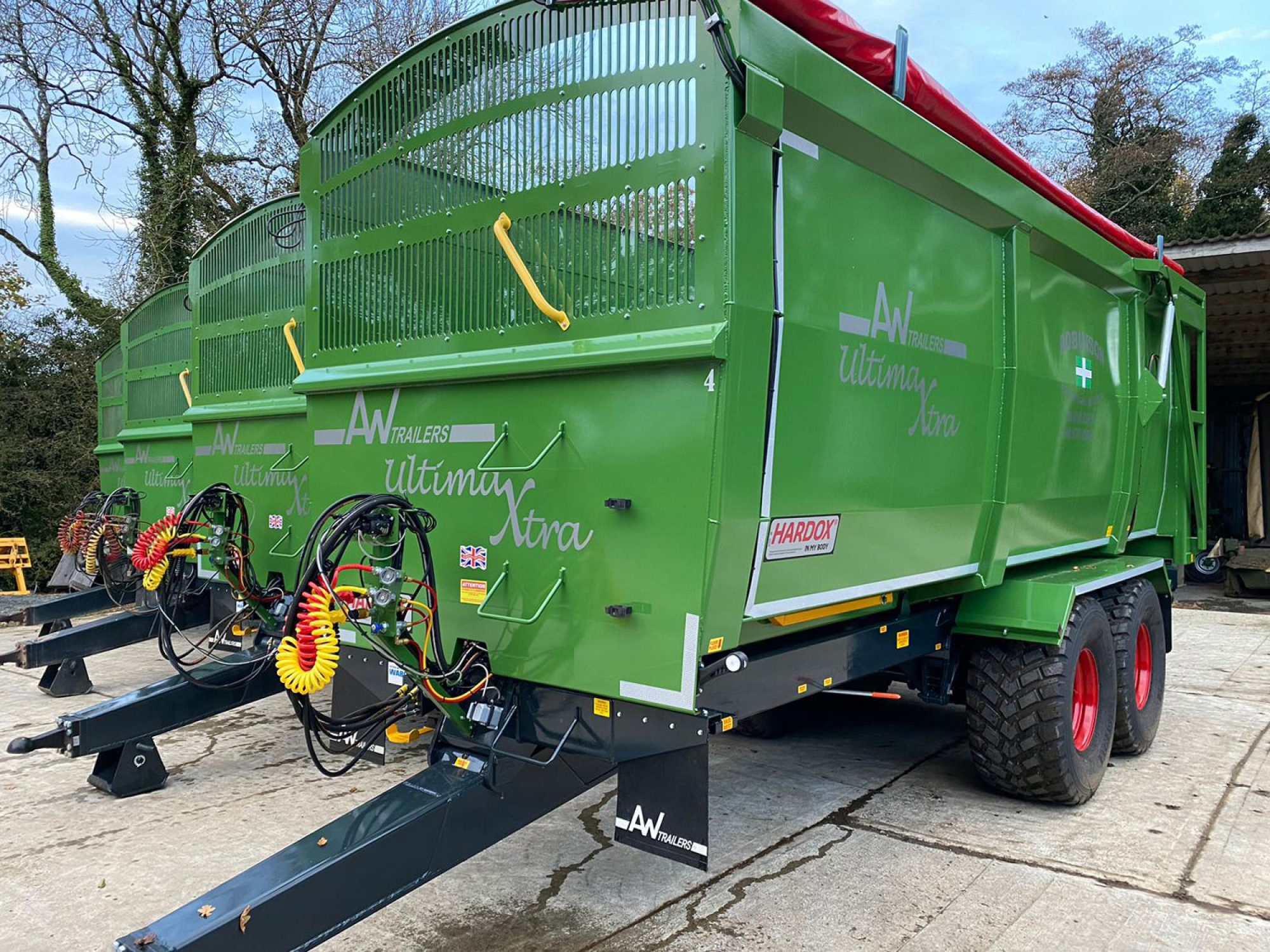

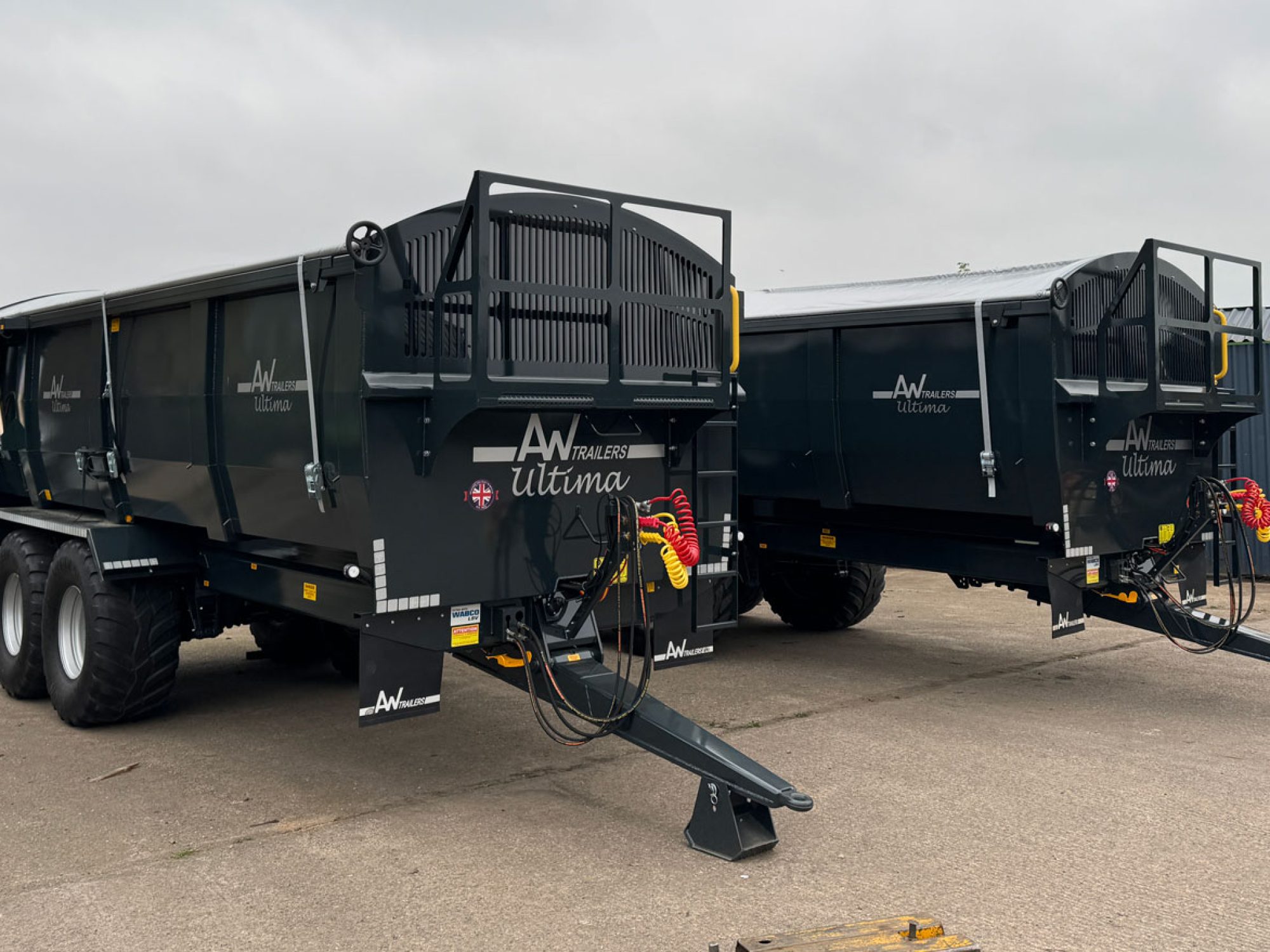

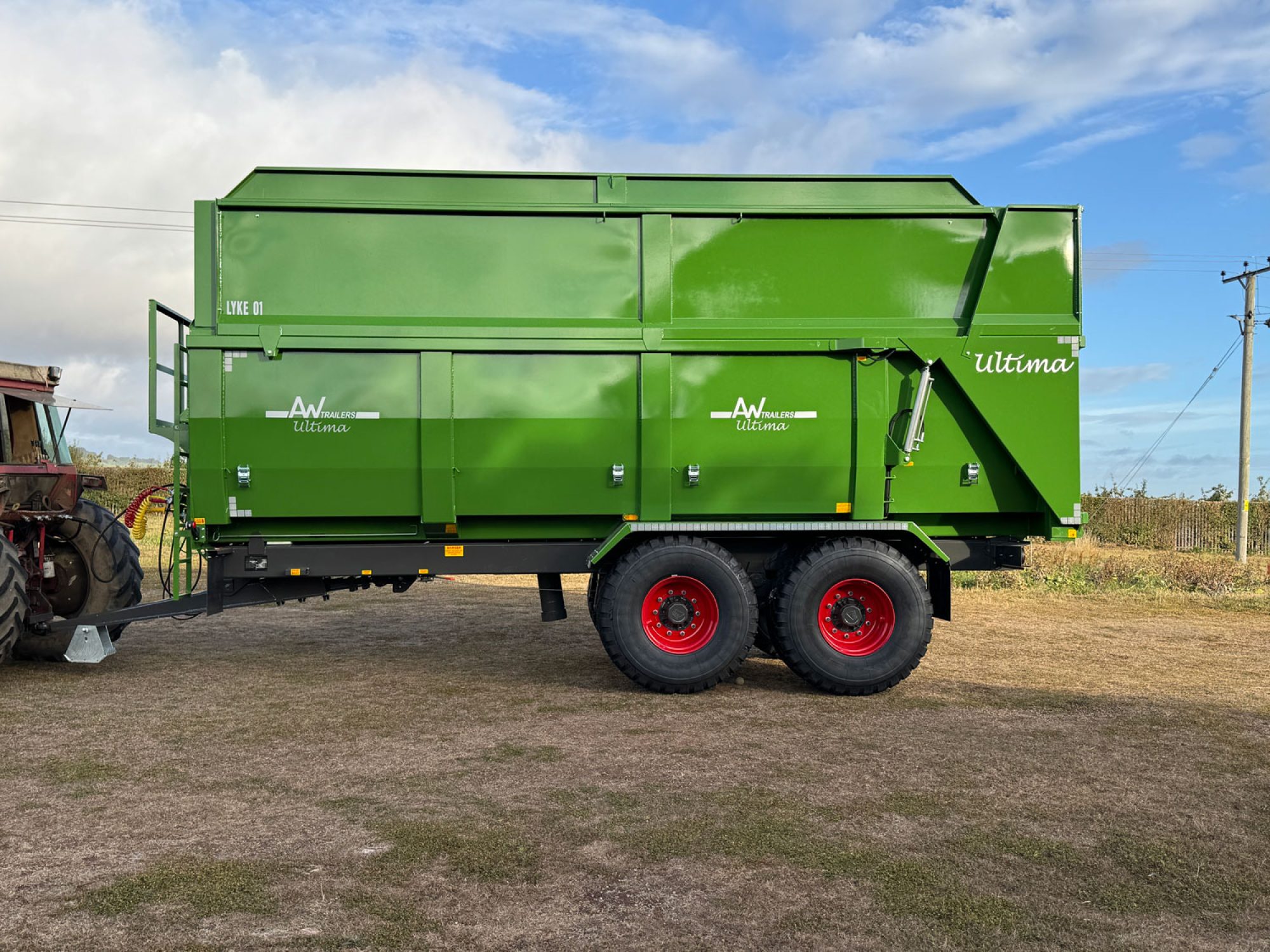

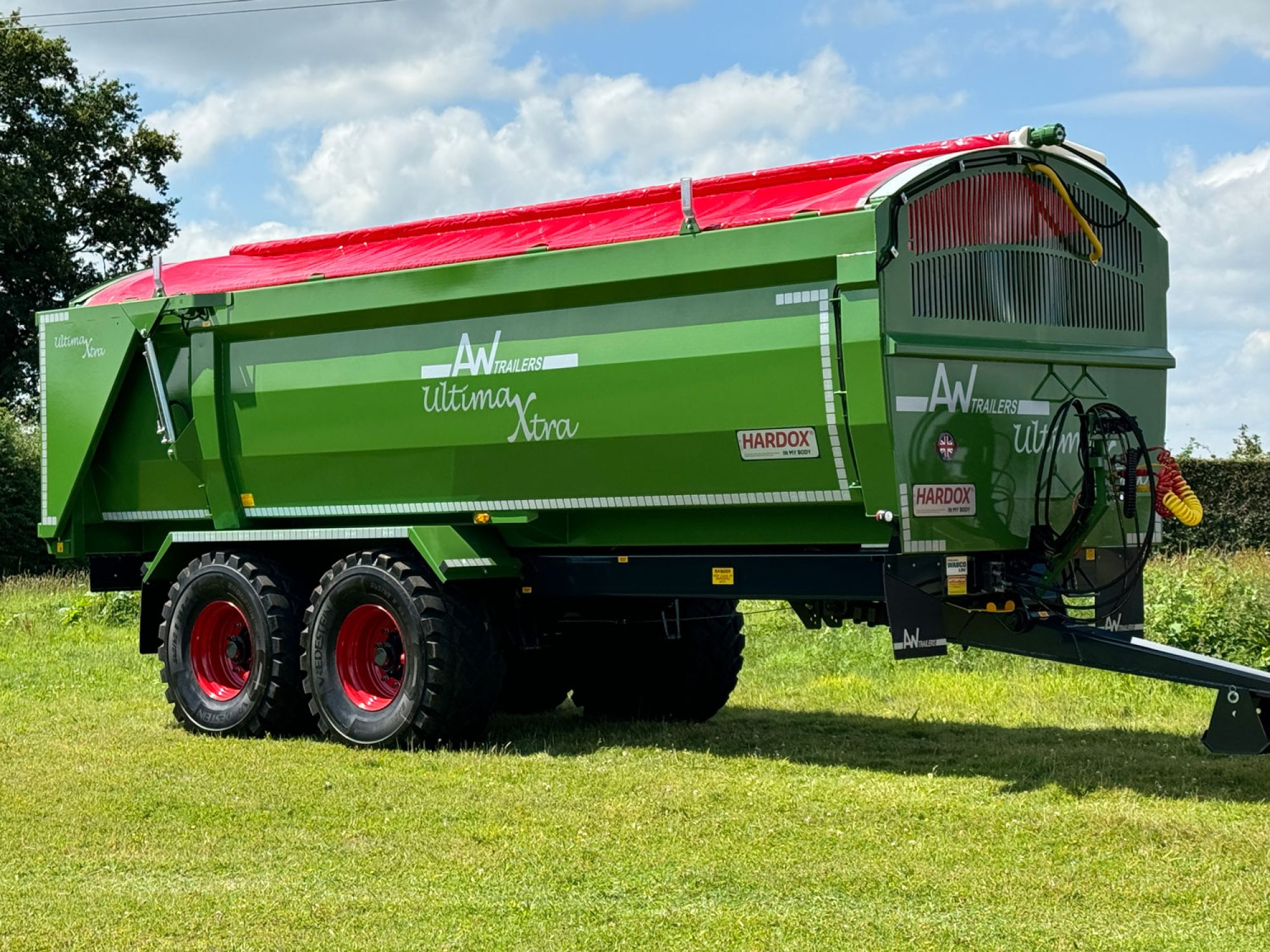

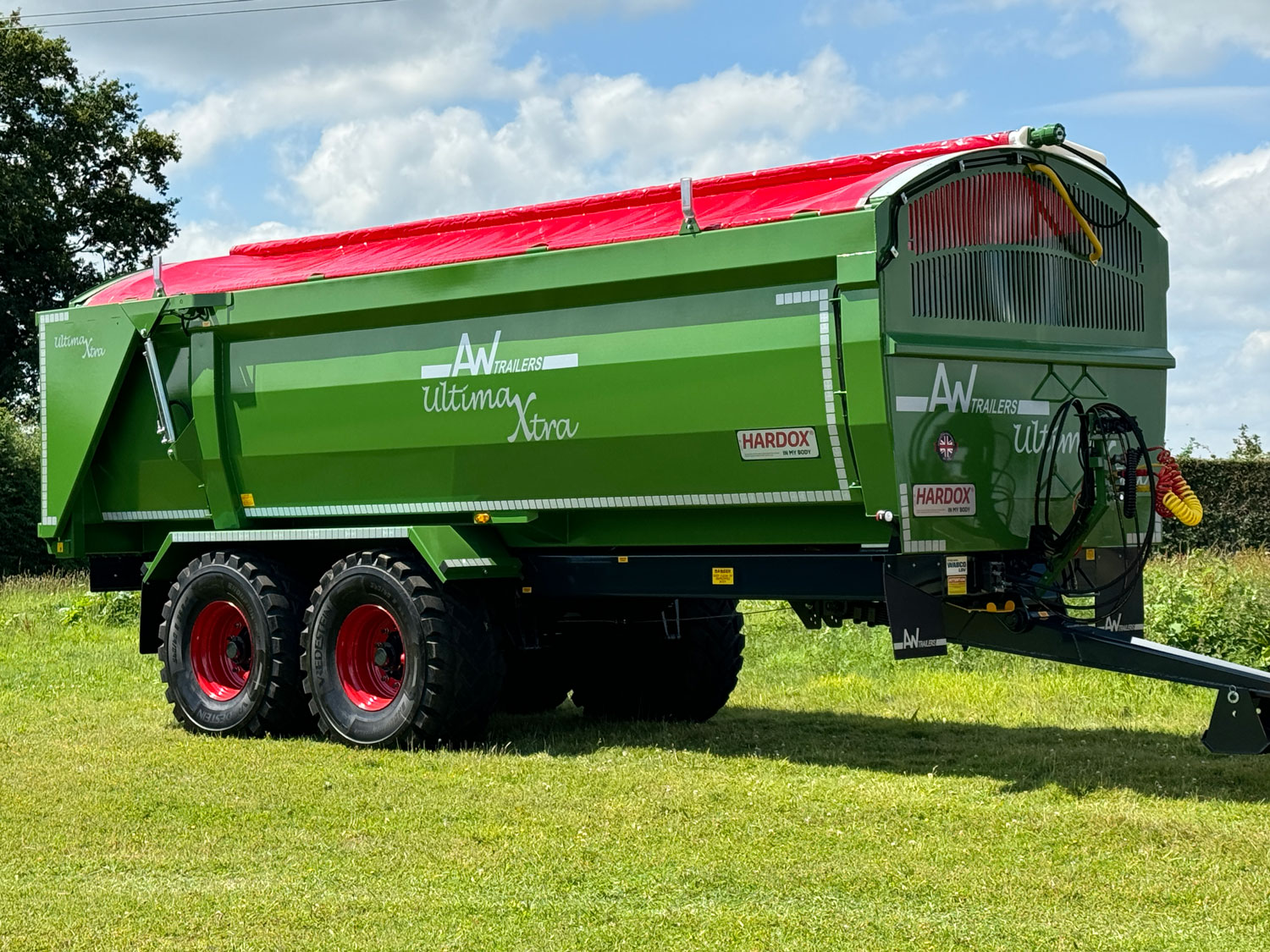

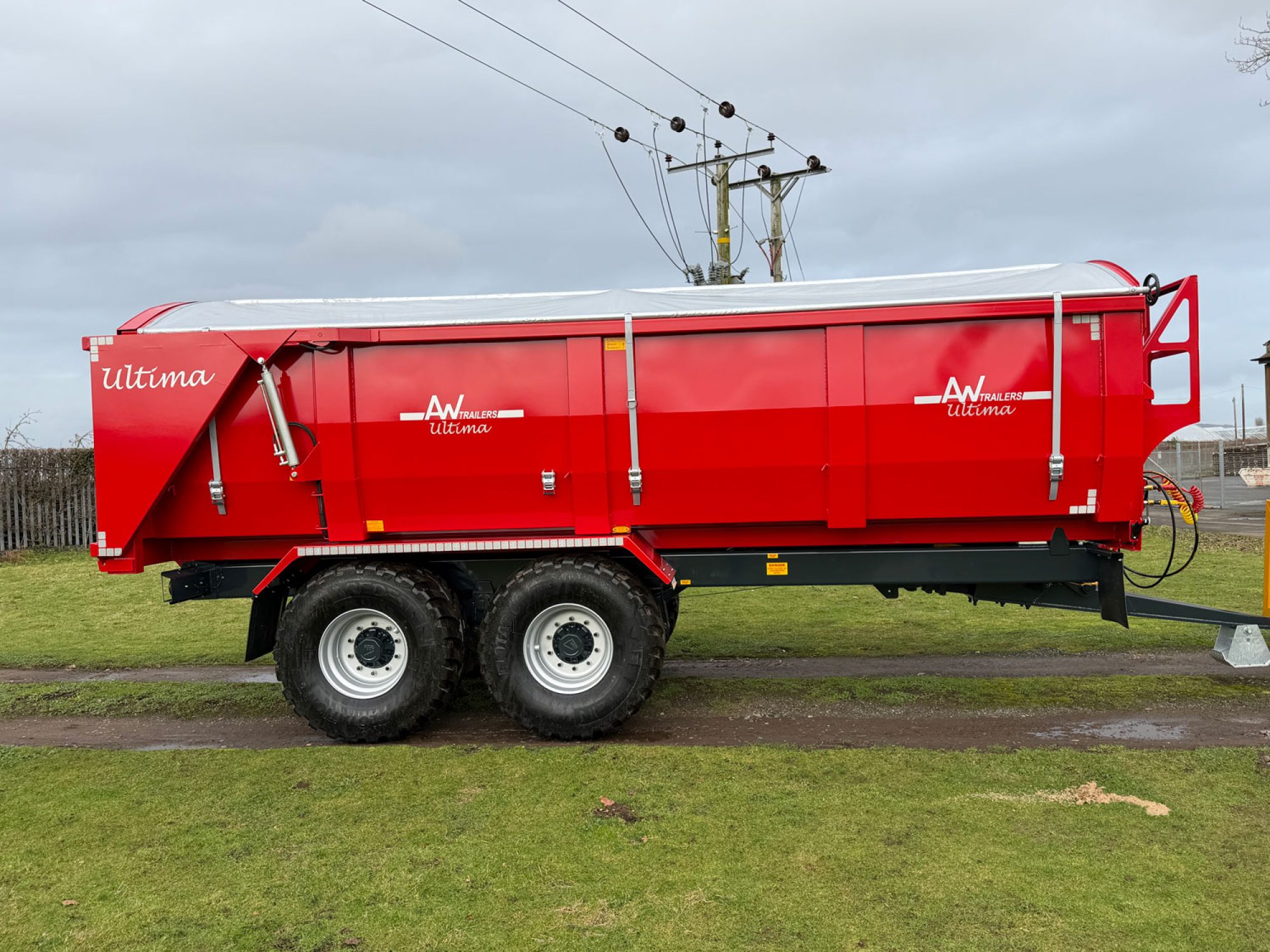

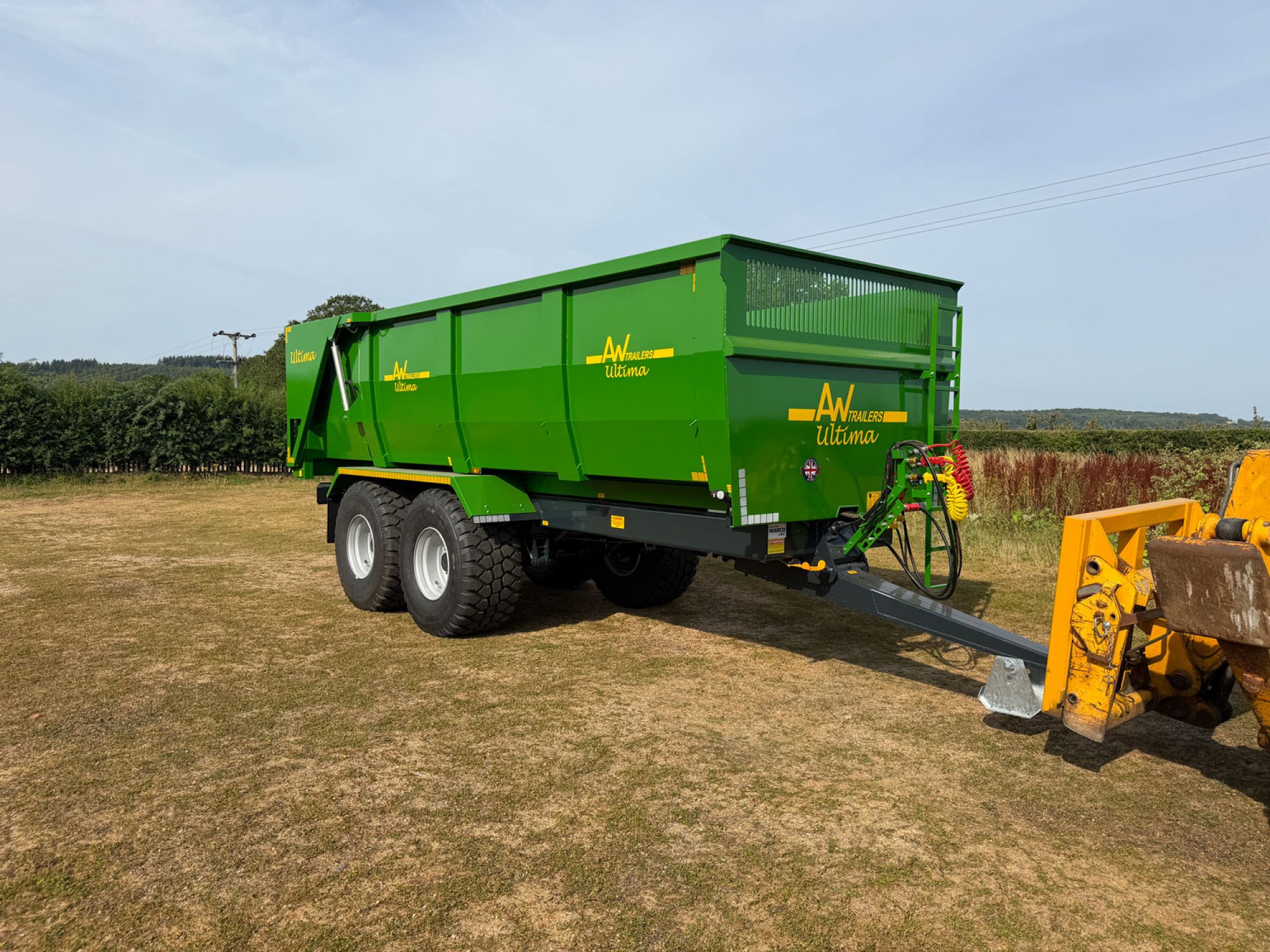

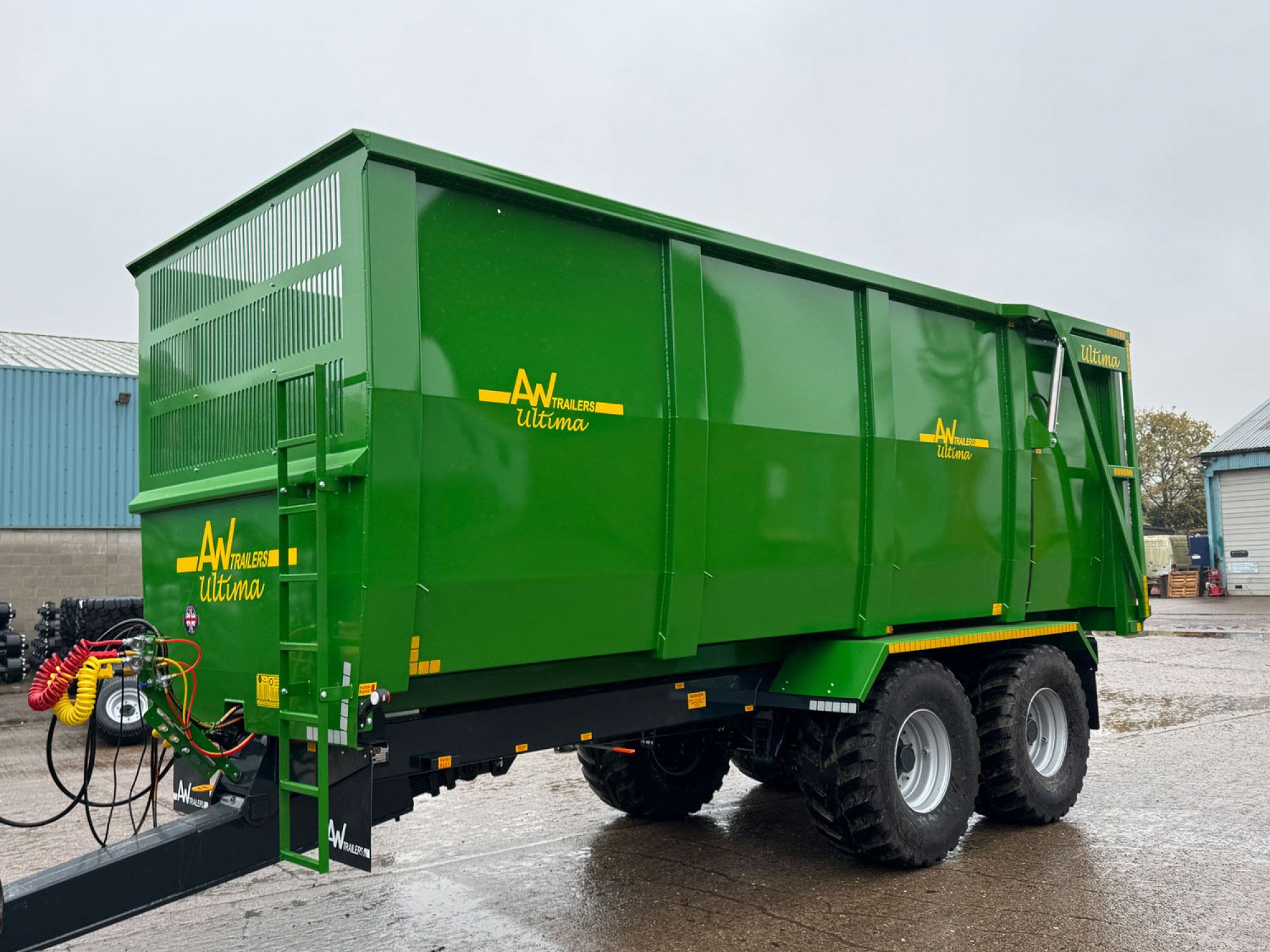

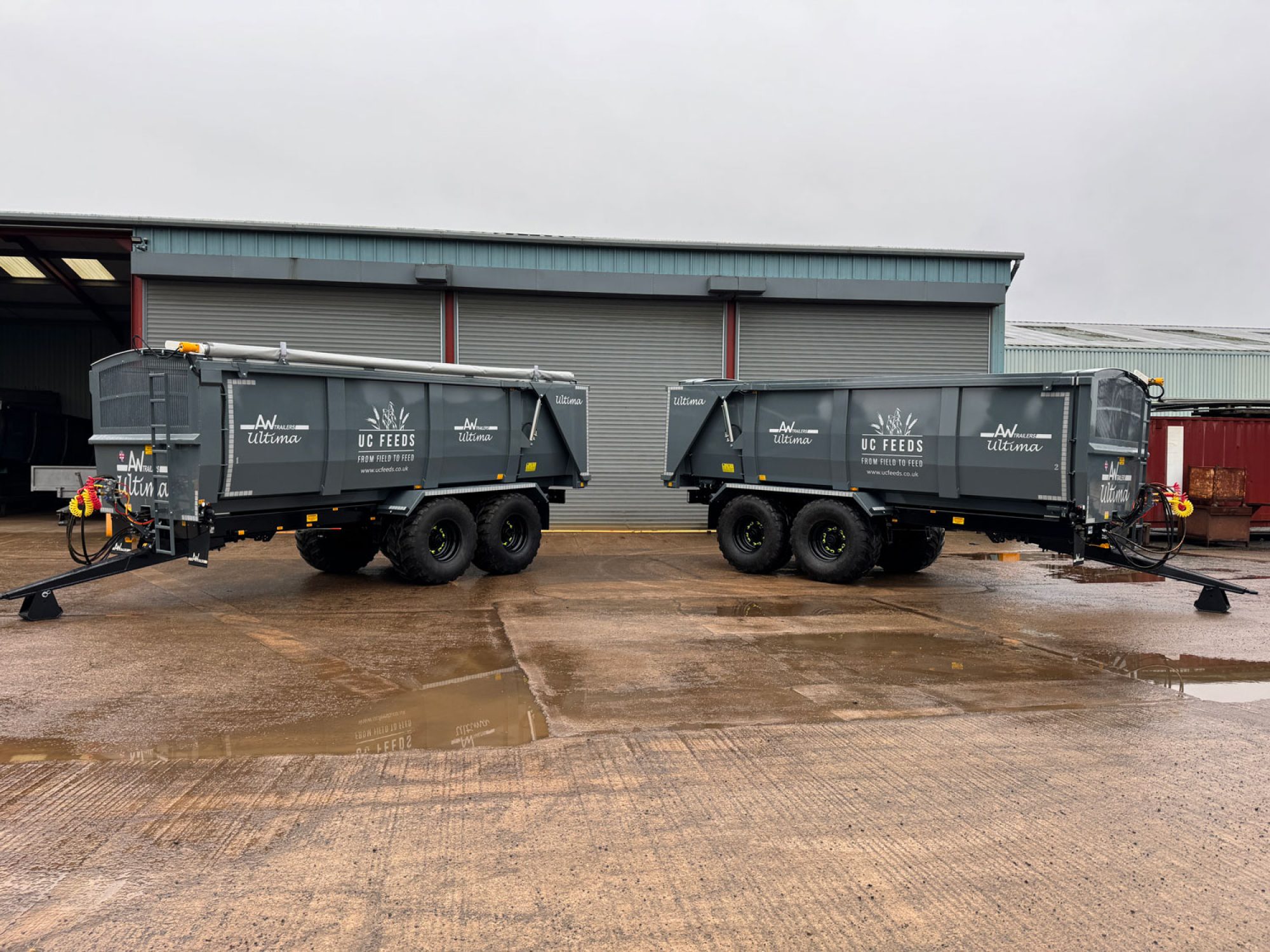

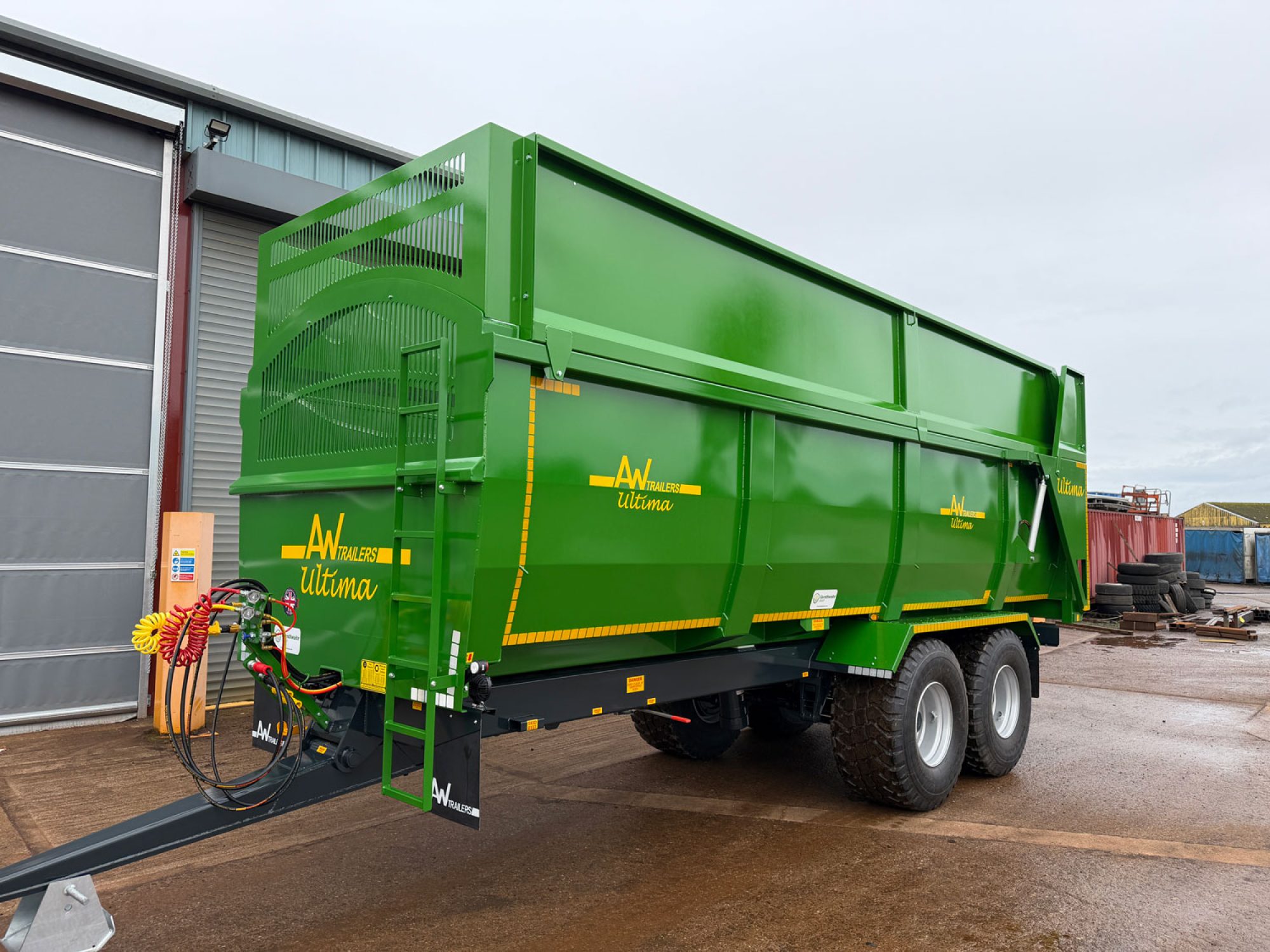

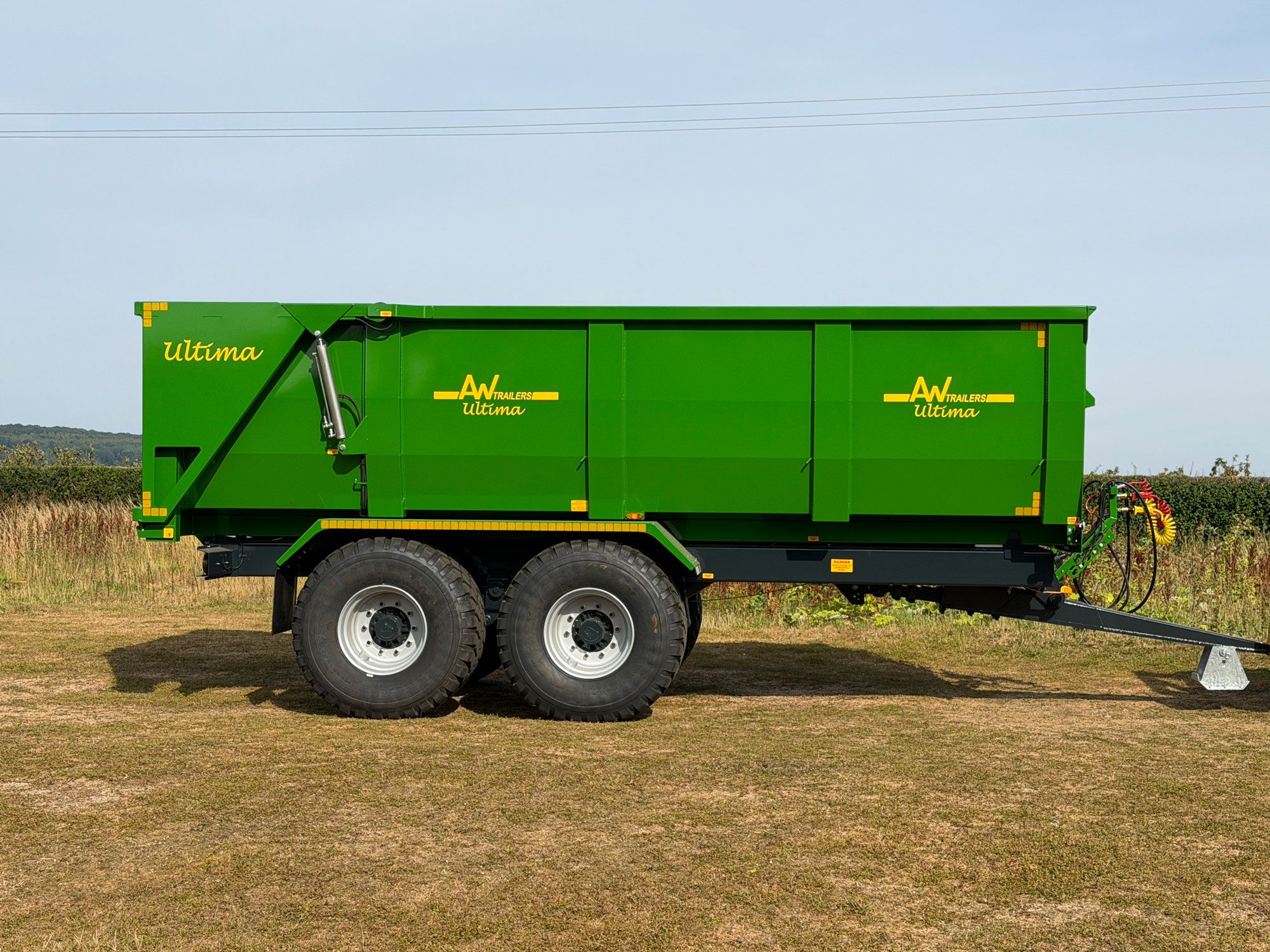

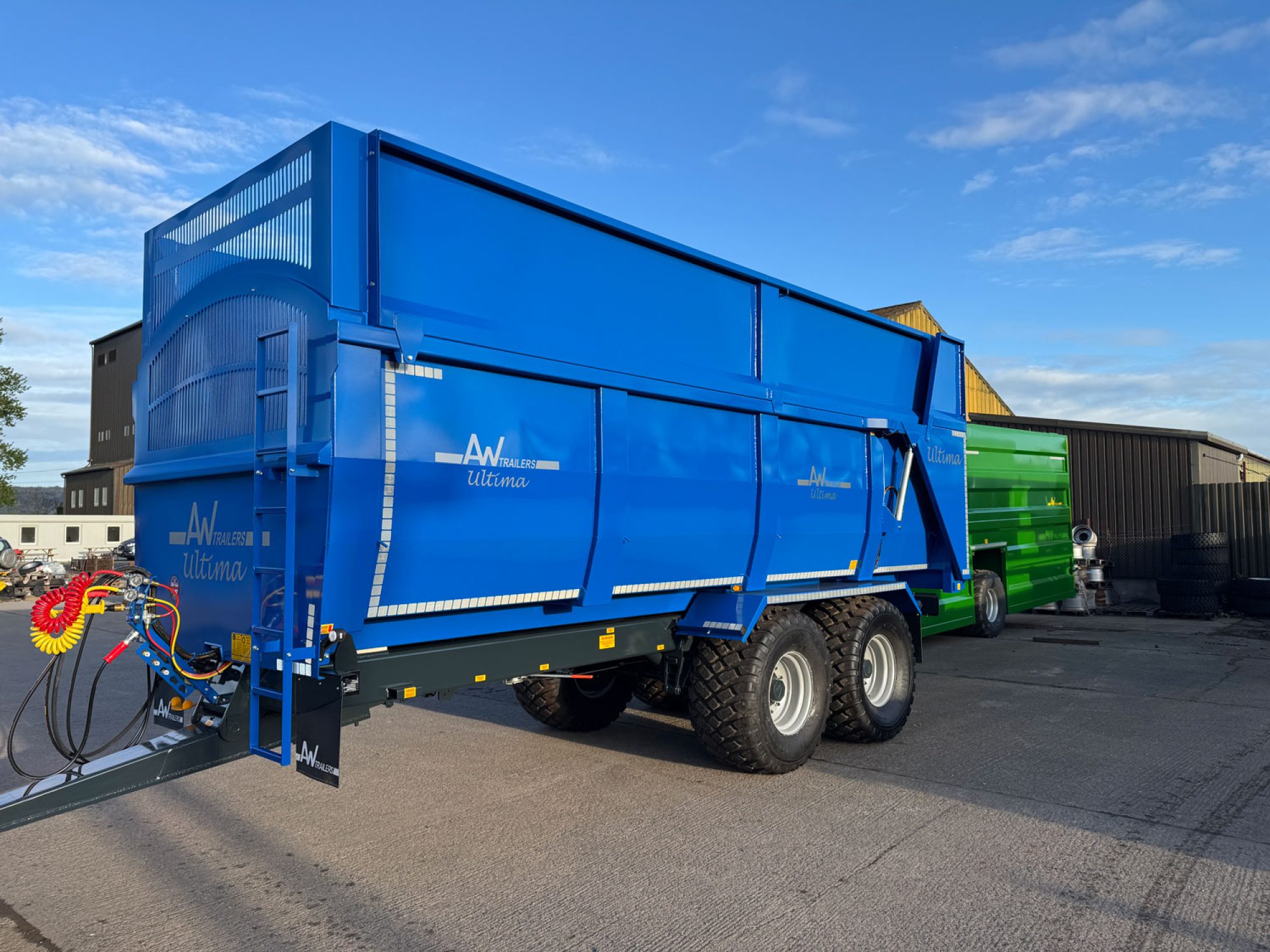

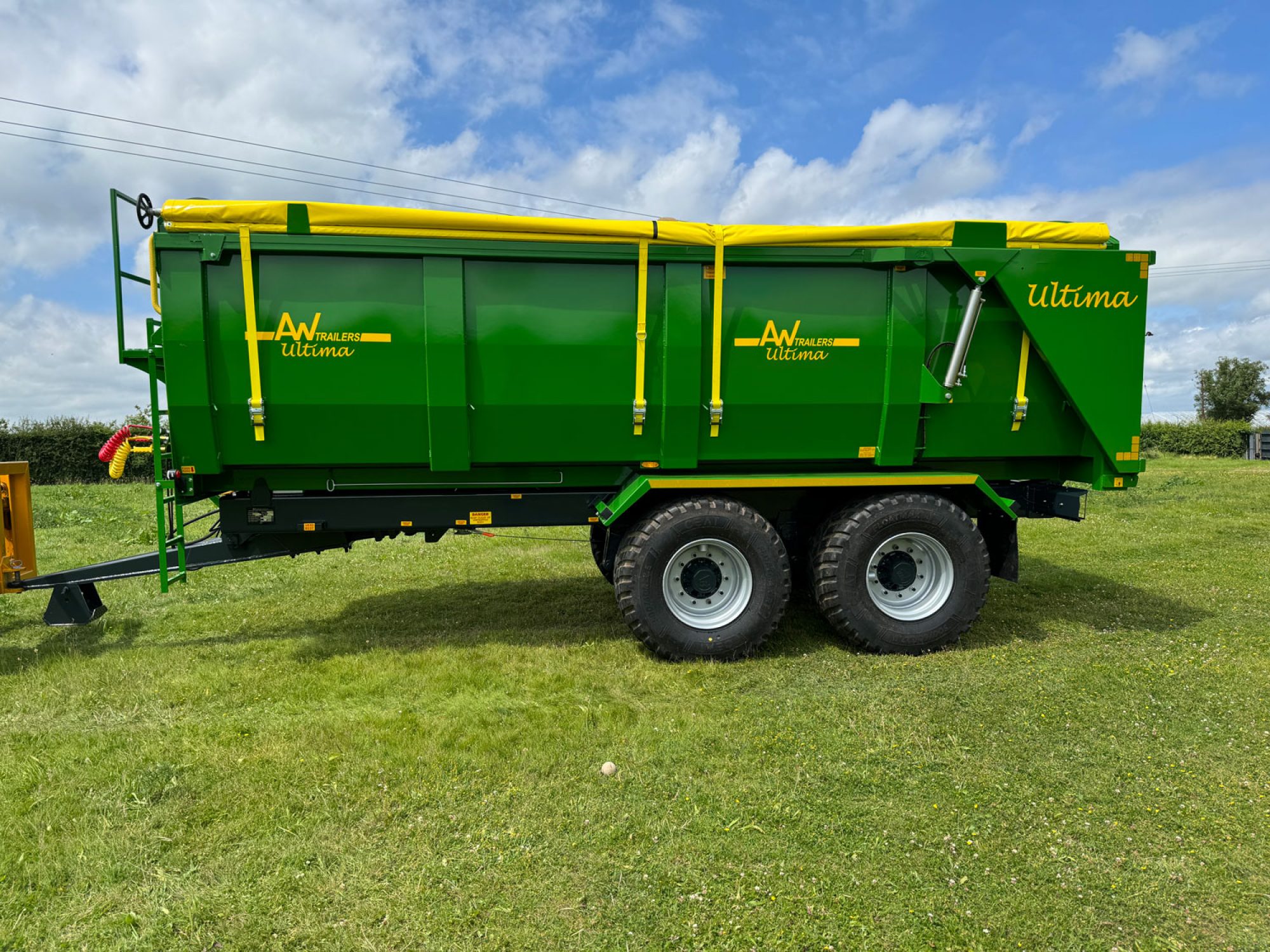

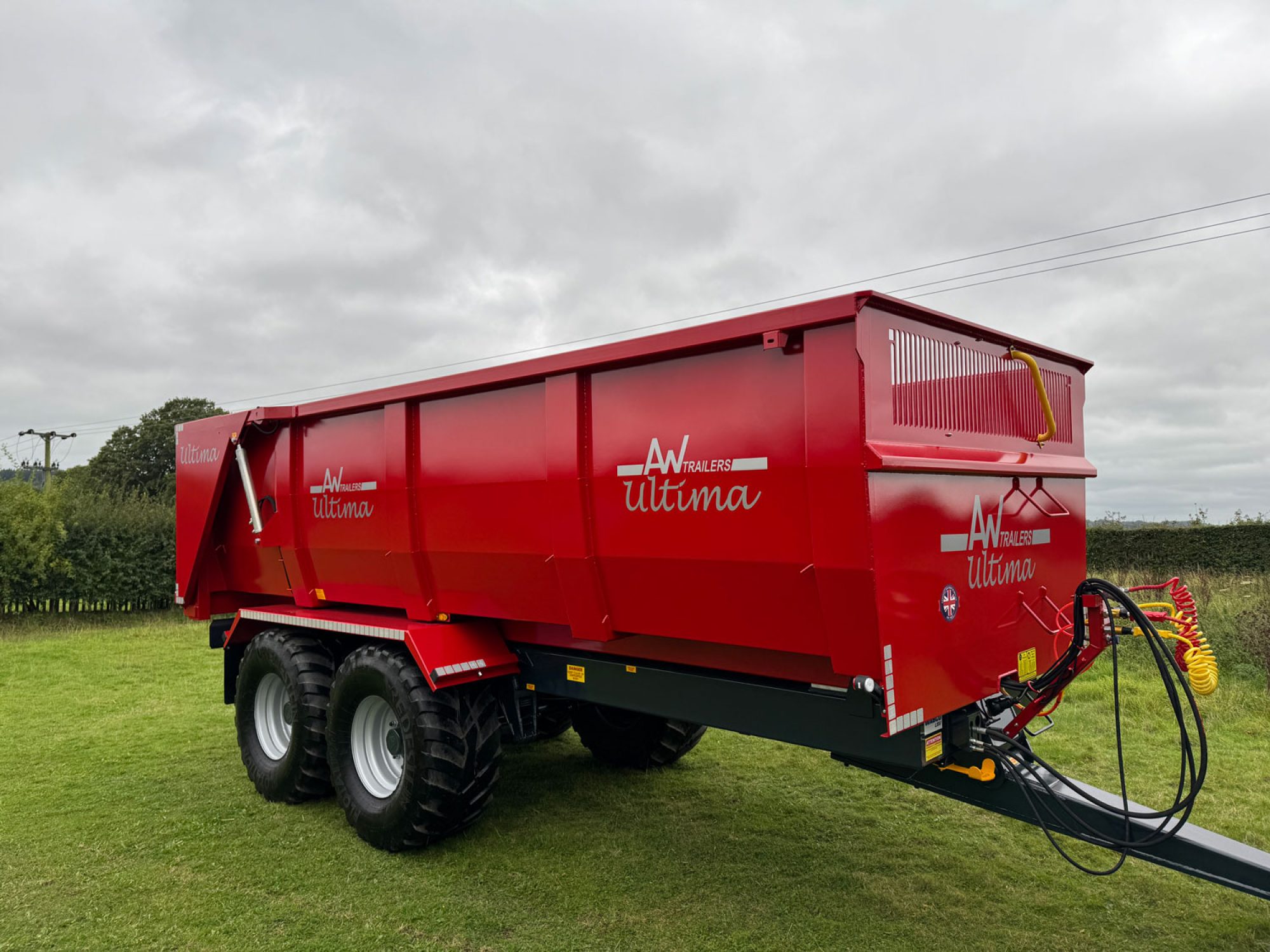

Ultima Monocoque Trailers

The AW Ultima range of trailers is built to handle the toughest demands of modern farming, whether you’re transporting grain or root crops. Every trailer in the Ultima line combines strength and smart design: a sleeker, more robust body, wide side channels for added strength, and reinforced flooring that can withstand heavy loads day after day.

But the Ultima isn’t just about durability—it’s about versatility too. Optional silage sides make it easy to carry a variety of materials, while a rollover sheet provides protection when conditions get challenging. Whether you’re moving crops across fields or into storage, the Ultima adapts to your needs, delivering reliable performance season after season.

With the Ultima, you’re getting more than just a trailer—you’re getting a piece of equipment designed to make your farm work smoother, safer, and more efficient.

Hydraulic Brakes with load sensing, Ratchet handbrake, Sprung drawbar – multi position, multi leaf, Steel mudguards c/w Mudflaps, Commercial axles (420 x 180), Rear towing points, Number plate holder, Body Prop, Removable skid c/w holder, 560/60 R22.5 Flotation Tyres, Bulkhead couplings, 5mm thick floor & 4mm sides, Full width front window c/w polycarbonate screen, Tapered body, LED Front, side and rear lights, LED flashing beacon, Contractor hydraulic tailboard, Chrome rams, Inspection ladder, Fully shotblasted, 2 Pack Primer & Topcoat, Grey Chassis, Choice of body colour (Standard tractor range)

Chassis/Running Gear

Steering Axle, ABS, Rear Drawbar c/w Electrics, Rear Drawbar c/w Electrics & Hydraulic Brakes, Rear Drawbar c/w Electrics & Air Brakes, Euro Hitch, Air Suspension, Hydraulic Suspension, Single ram, Hydraulic Jack

Body

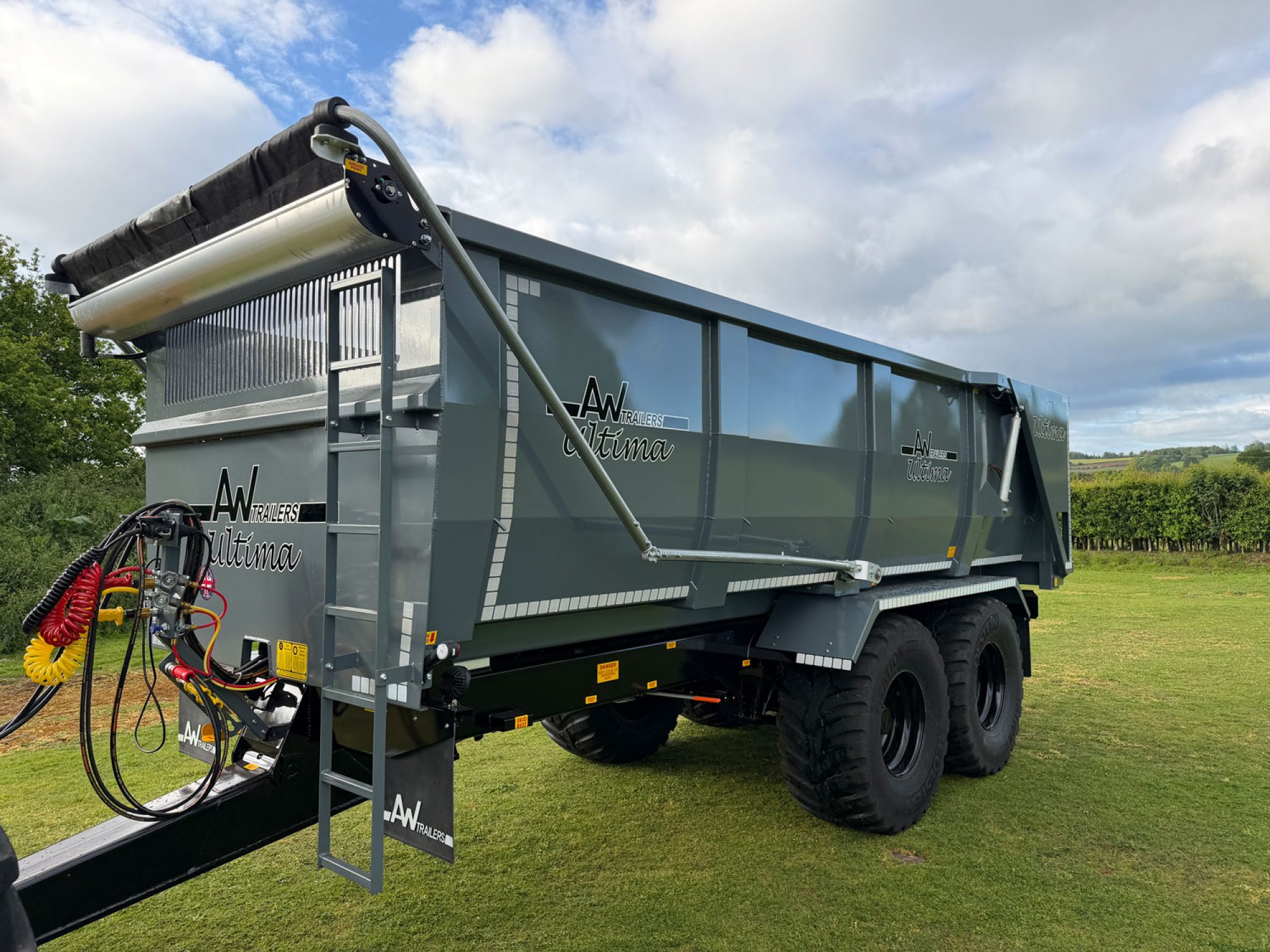

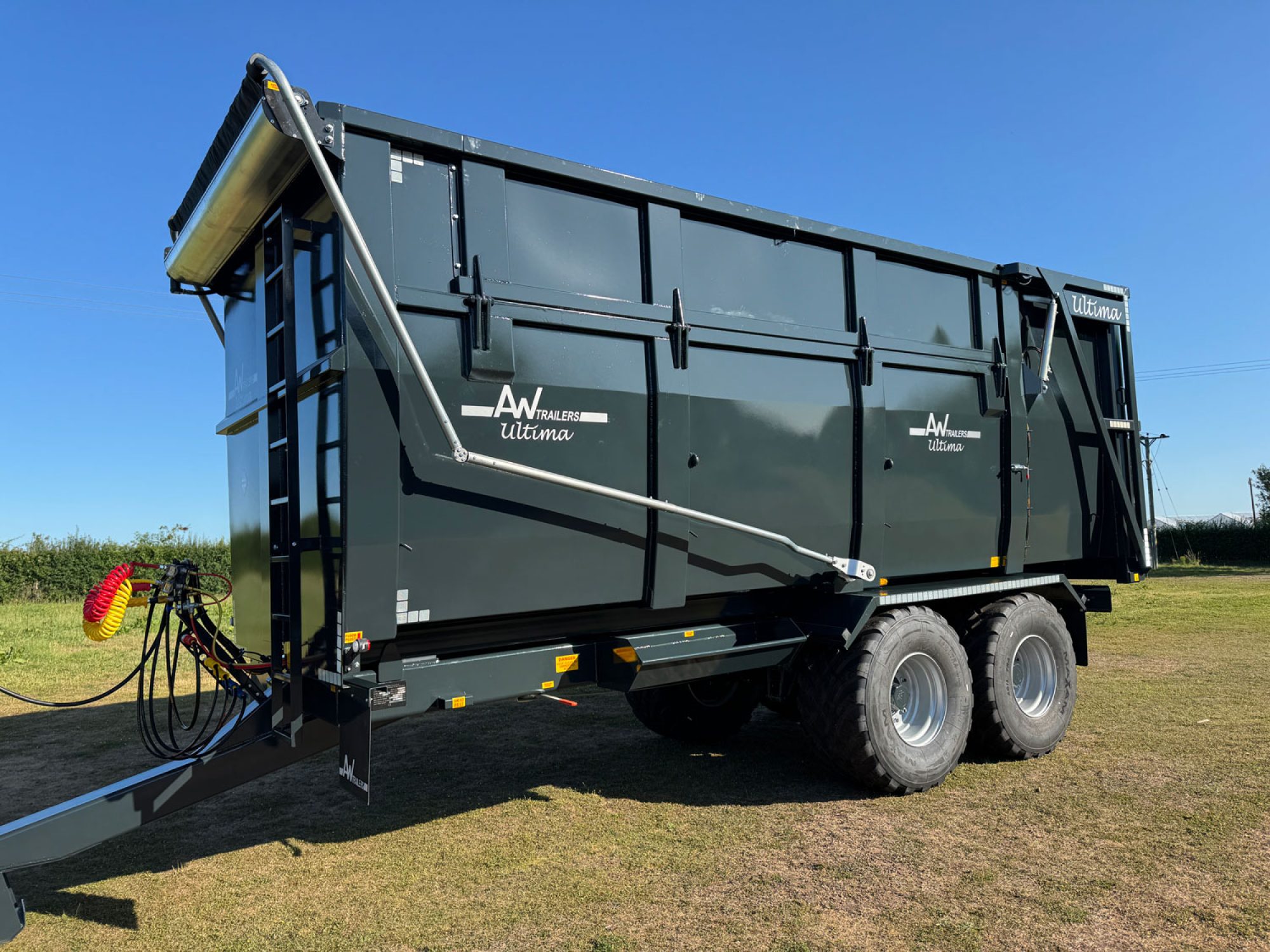

Barn Doors, Grain Chute, Grain Sock, Side Window c/w Steel Slide, Manual Side to Side Rollover Sheet, Hydraulic Side to Side Rollover Sheet, Front/Back Sheet/Net , Front Platform, Tailboard lock valve, Single Ram, Weigh Cell System

Lighting

Extra High-Level Lights, Extra Side Lights, Work Lights, Interior Lights, Hi-Viz, Reverse lights on a plunger switch

Misc

Mudflaps, Aluminium Loading Ramps, Side Crash Rails, Strap box

Ultima Monocoque Trailers- Downloadable file

Ultima Monocoque Specifications Table

Ultima 12T Mono Ultima 14T Mono Ultima 16T Mono Ultima 18T Mono Ultima 20T Mono Ultima 24T Mono
Length (Internal) 5505mm/18’ 6100mm/20' 6700mm/22' 7300mm/24' 7300mm/24' 9000mm/29'6"
Width (Internal) 2275mm/7'6" 2275mm/7'6" 2275mm/7'6" 2275mm/7'6" 2275mm/7'6" 2275mm/7'6"
Body Height 1345mm/4'5" 1345mm/4'5" 1345mm/4'6" 1345mm/4'6" 1525mm/5' 1525mm/5'
Cubic Capacity - Grain 16.8³/596ft³ 18.7³/663ft³ 20.5³/729ft³ 22.5³/795ft³ 25.3³/899ft³ 31³/1095ft³
Chassis 250 x 150 RHS 250 x 150 RHS 250 x 150 RHS 250 x 150 RHS 250 x 150 RHS 300 x 200 RHS
Axle Size 127mm Round 10 Stud (Tandem) 127mm Round 10 Stud (Tandem) 127mm Round 10 Stud (Tandem) 127mm Round 10 Stud (Tandem) 127mm Round 10 Stud (Tandem) 127mm Round 10 Stud (Tri-Axle + Rear Steer)
Brake Size 420 x 180 420 x 180 420 x 180 420 x 180 420 x 180 420 x 180
Wheel Track 2000mm/6'7" 2000mm/6'7" 2000mm/6'7" 2000mm/6'7" 2000mm/6'7" 2000mm/6'7"
Tyre Size 560/60R22.5 560/60R22.5 560/60R22.5 560/60R22.5 560/60R22.5 560/60R22.5
Suspension 4 Leaf Parabolic 75mm 3 Leaf Parabolic 100mm 3 Leaf Parabolic 100mm 3 Leaf Parabolic 100mm 3 Leaf Parabolic 100mm 3 Leaf Parabolic 100mm
O/a Length 7050mm/23'2" 7645mm/25'1" 8245mm/27'1" 8870mm/29'1" 8870mm/29'1" 10570mm/34'7"
O/a Width 2475mm/8'2" 2475mm/8'2" 2475mm/8'2" 2475mm/8'2" 2475mm/8'2" 2475mm/8'2"
O/a Height 2810mm/8'1" 2775mm/9'1" 2775mm/9'1" 2775mm/9'1" 2955mm/9'8" 2955mm/9'8"
Max Tipped Weight 6305mm/20" 6730mm/22'1" 7330mm/24' 7670mm/25'2" 7790mm/25'7" 9100mm/29'8"
Unladen weight 5.0 Tonne Approx. 5.3 Tonne Approx. 5.7 Tonne Approx. 6.1 Tonne Approx. 7.0 Tonne Approx. 8.0 Tonne Approx.
