Plant Low Loaders

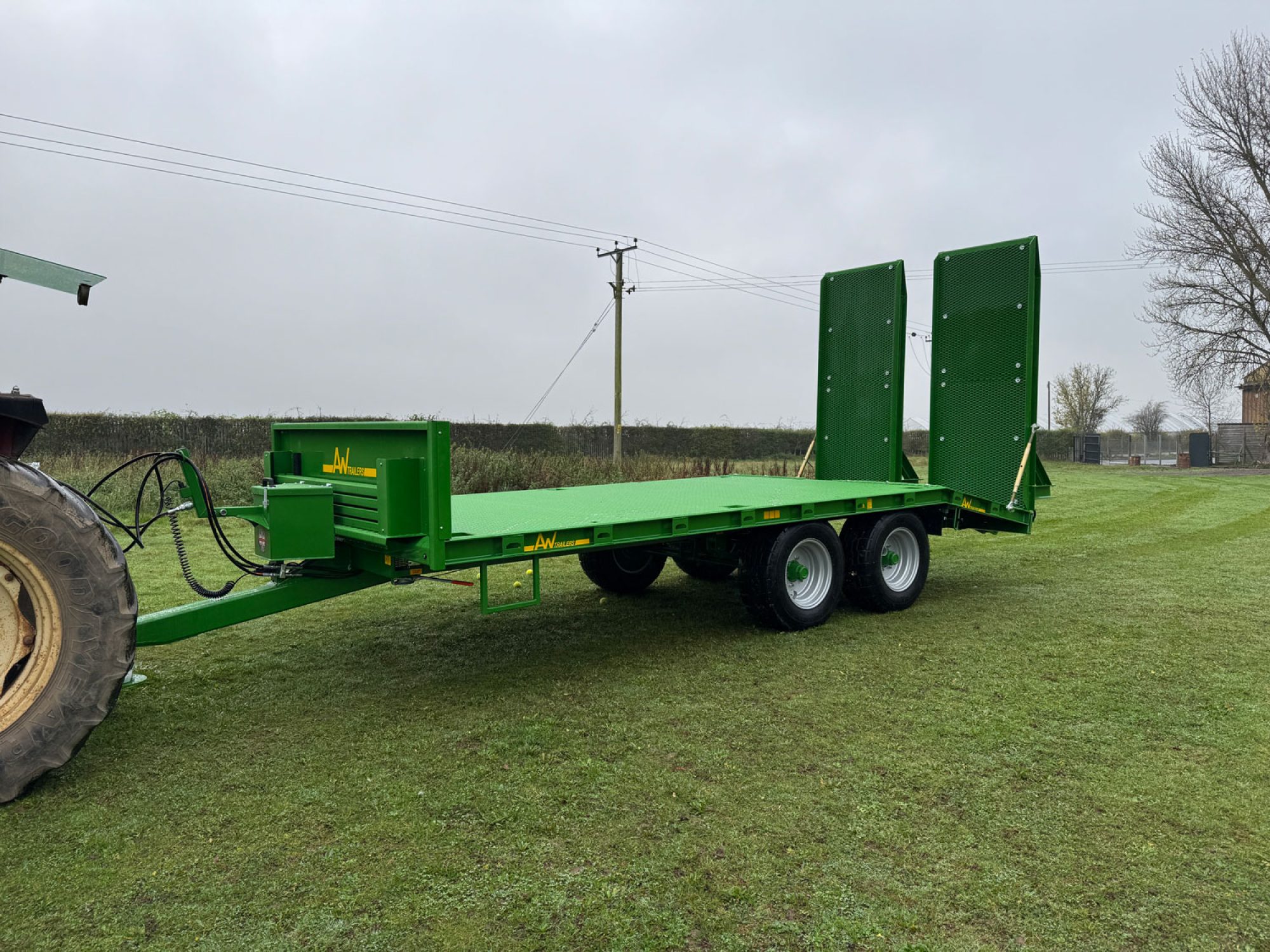

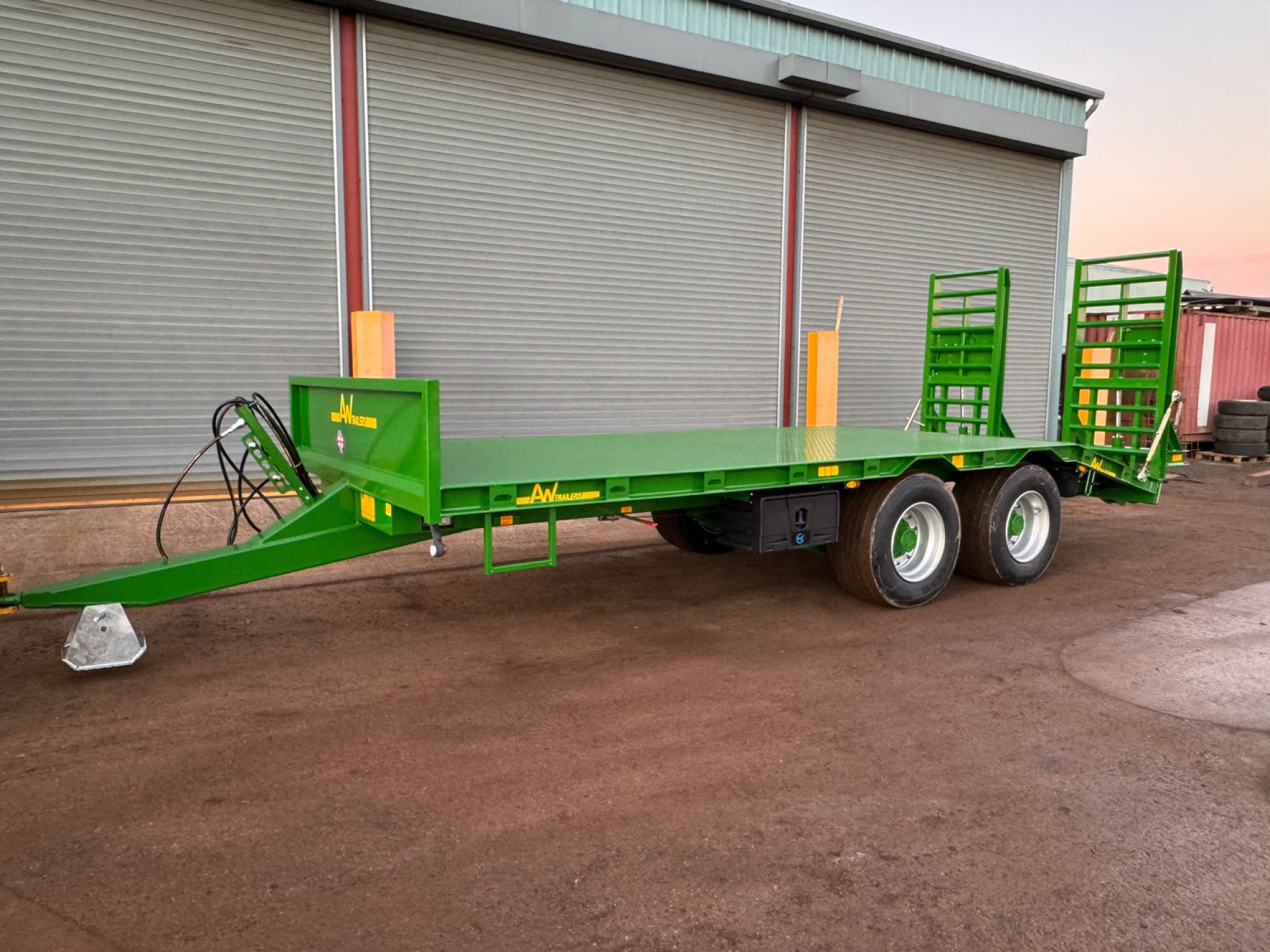

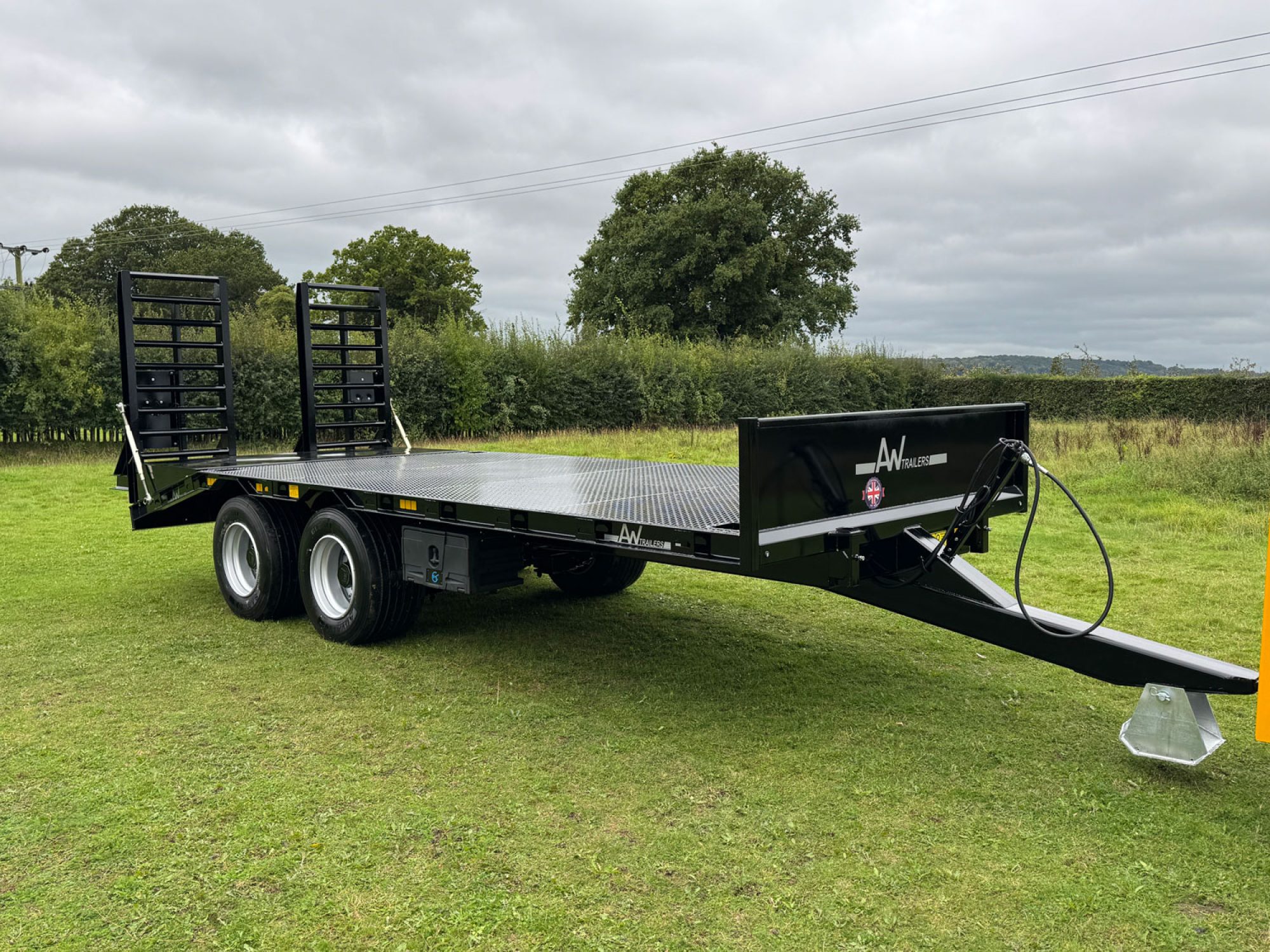

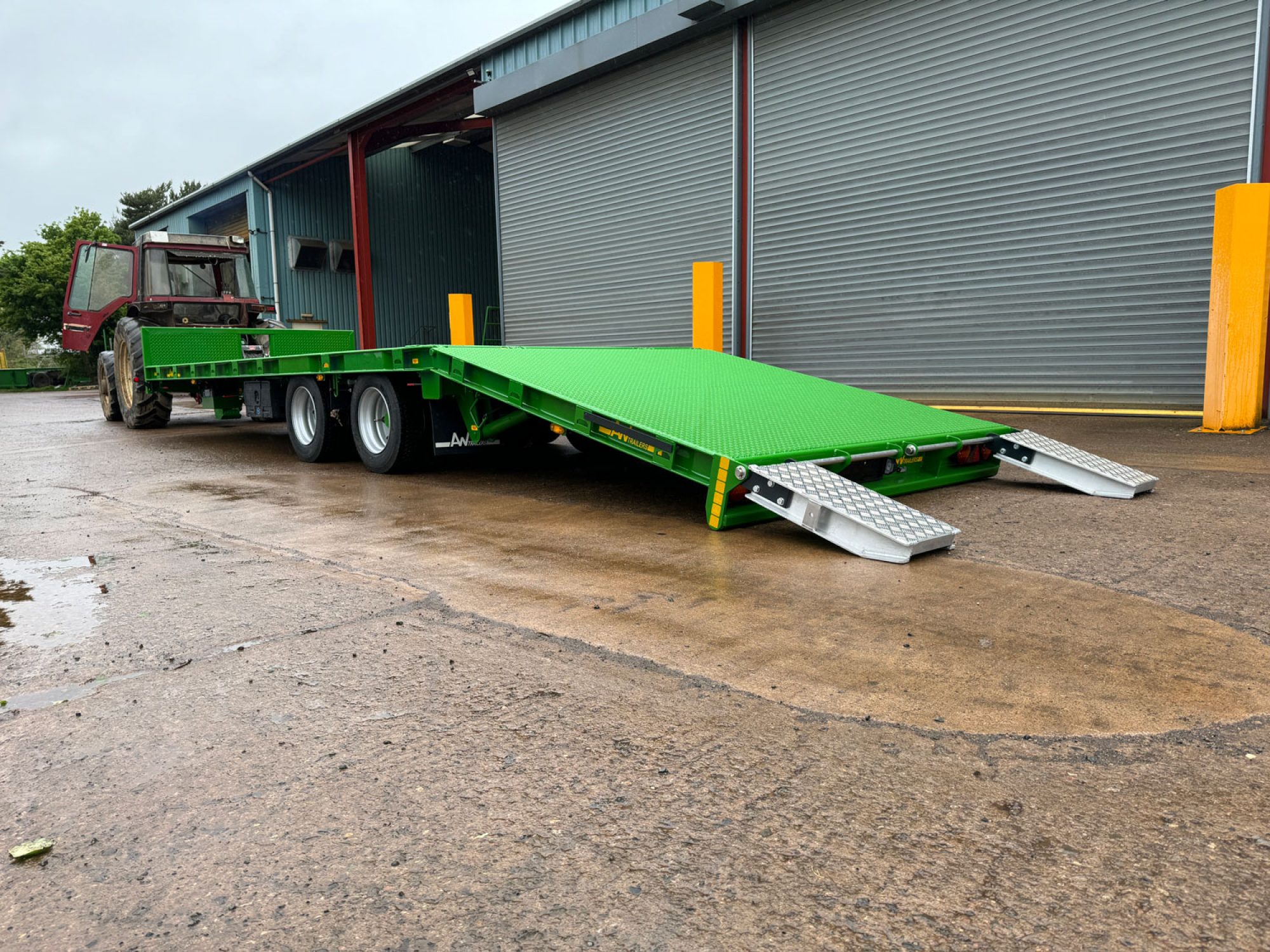

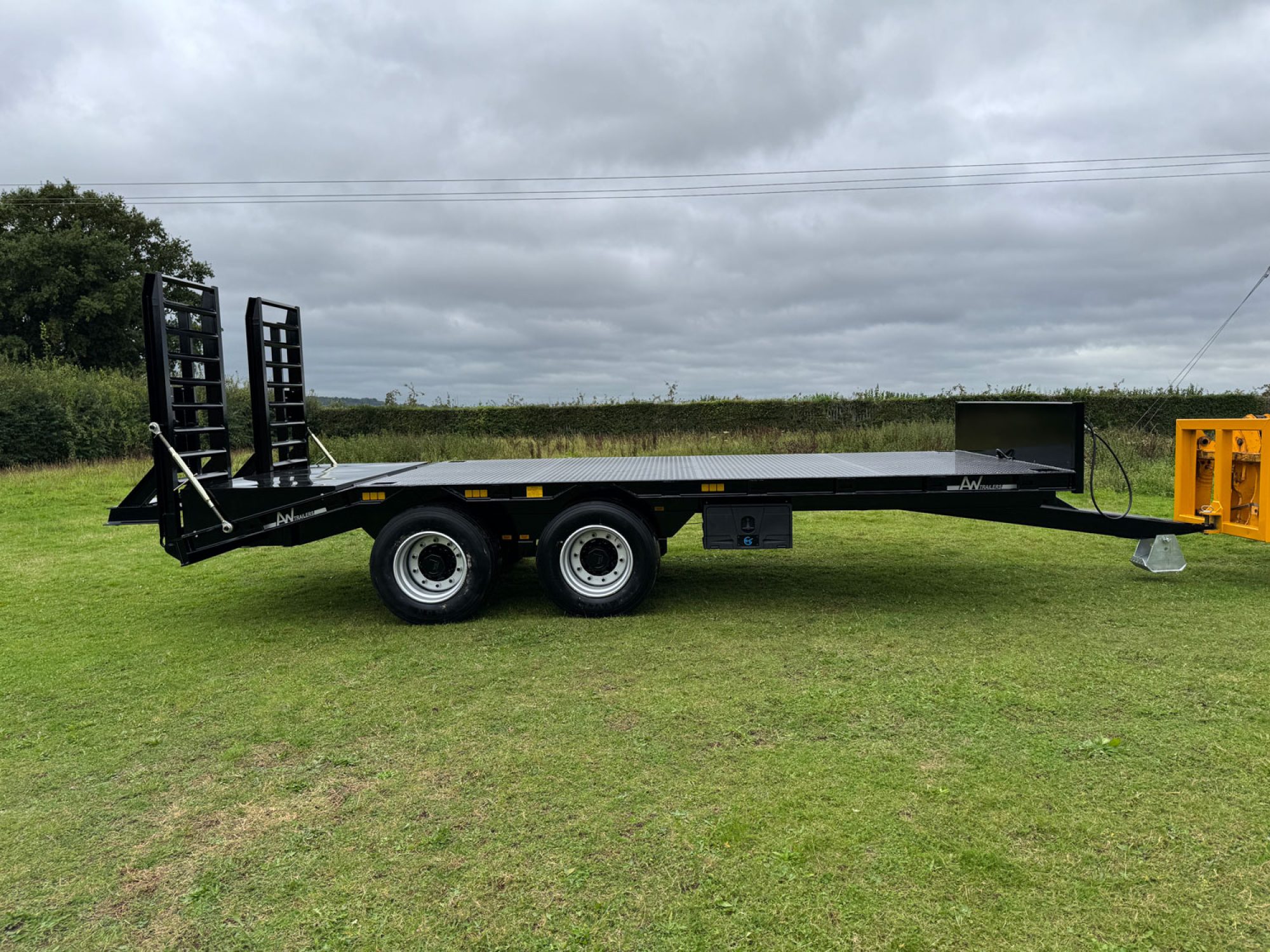

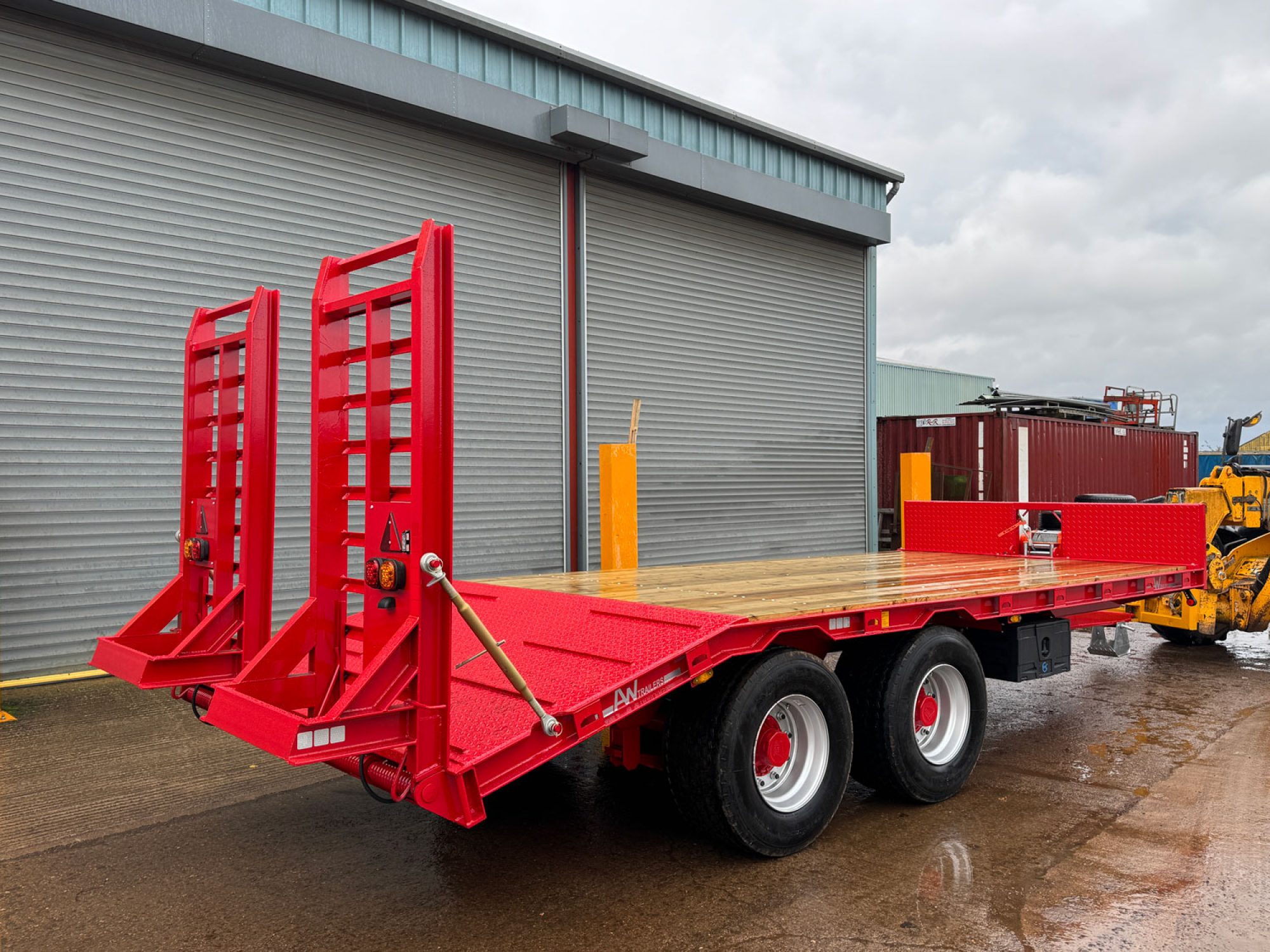

The AW range of Plant Low Loader Trailers features a tandem-axle setup on a flatbed, along with a beaver tail and fold-down rear ramps to make loading and unloading straightforward. There’s also the option of a hydraulic tail, giving you an even easier and more efficient loading experience.

Designed to handle both wheeled and tracked machinery—like diggers and excavators—these trailers are a reliable choice for moving plant equipment. With a range of optional extras available, they can be set up to suit different jobs, making them a really versatile solution for day-to-day use.

Standard Features 10-12T

Hydraulic Brakes, Ratchet handbrake, 4.5mm Thick Treadplate floor, 50mm softwood or hardwood, Removable skid c/w holder, LED Front and rear lights, Heavy duty PFC side runner’s c/w laser cut lashing points, Sprung assisted loading ramps, Fully shotblasted, 2 Pack Primer & Top coat
  • Hydraulic Brakes
  • Ratchet Handbrake
  • 4.5mm Thick Treadplate Floor
  • 50mm Softwood or Hardwood
  • Removable Skid with Holder
  • LED Front & Rear Lights
  • Heavy-Duty PFC Side Runners with Laser-Cut Lashing Points
  • Sprung-Assisted Loading Ramps
  • Fully Shotblasted
  • 2-Pack Primer & Topcoat

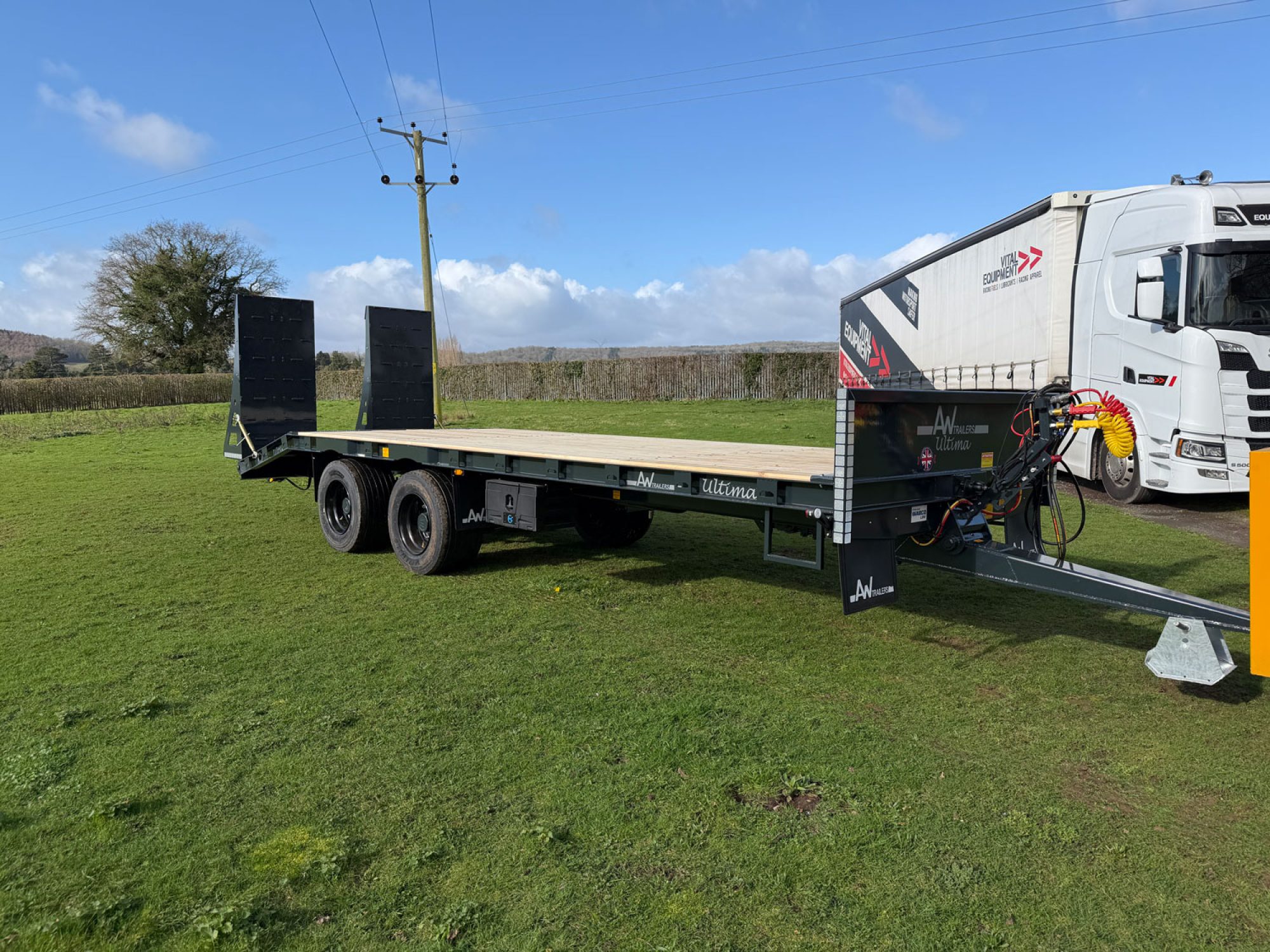

Ultima Features

Hydraulic load sensing valve, LED stalk front lights, side markers, beacon and double hamburger rear lights, Number plate holder, Sprung drawbar, Double strapbox
  • Hydraulic Load Sensing Valve
  • LED Stalk Front Lights
  • Side Markers
  • Beacon
  • Double Hamburger Rear Lights
  • Number Plate Holder
  • Sprung Drawbar
  • Double Strap Box

Chassis?Running Gear

Various axle upgrades, Steering Axle, ABS (with commercial axles only), Euro Hitch, Air Suspension, Hydraulic Suspension, Hydraulic Jack
  • Various Axle Upgrades
  • Steering Axle
  • ABS (with Commercial Axles Only)
  • Euro Hitch
  • Air Suspension
  • Hydraulic Suspension
  • Hydraulic Jack

Above Floor Options

Bale wedge, Hydraulic ramps, Hydraulic beavertail (minimum trailer length 28), Fall arrest straps
  • Bale Wedge
  • Hydraulic Ramps

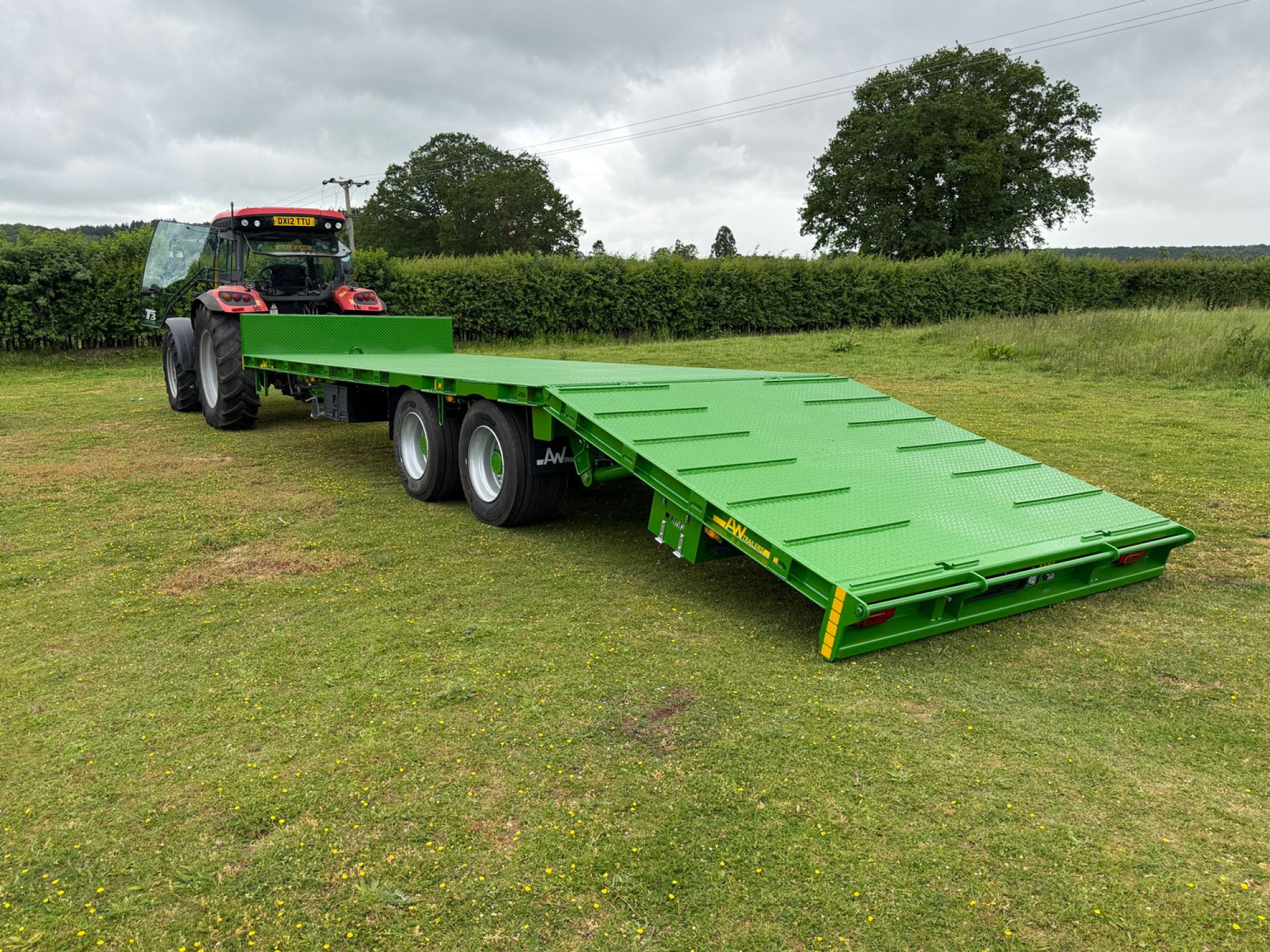

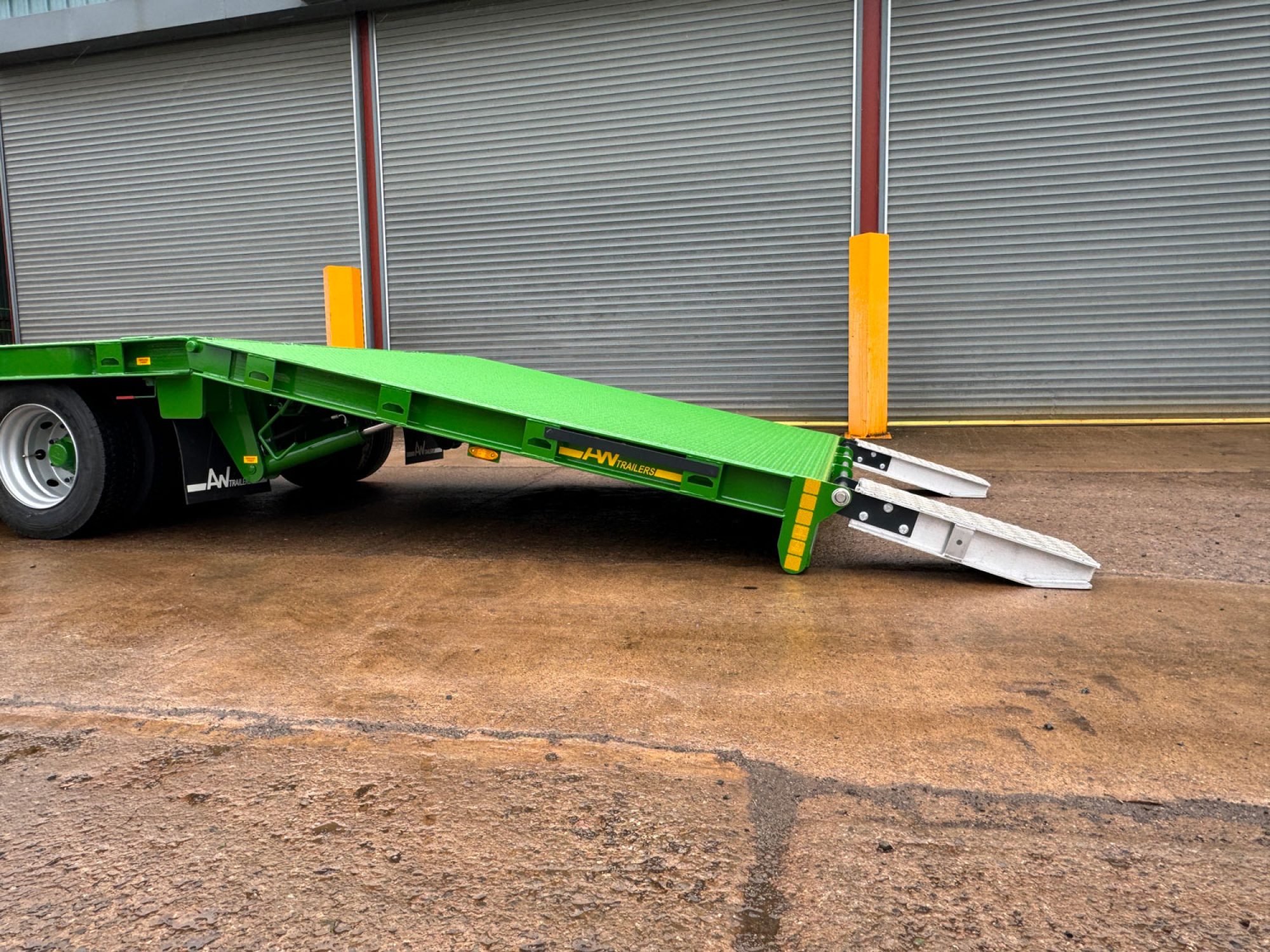

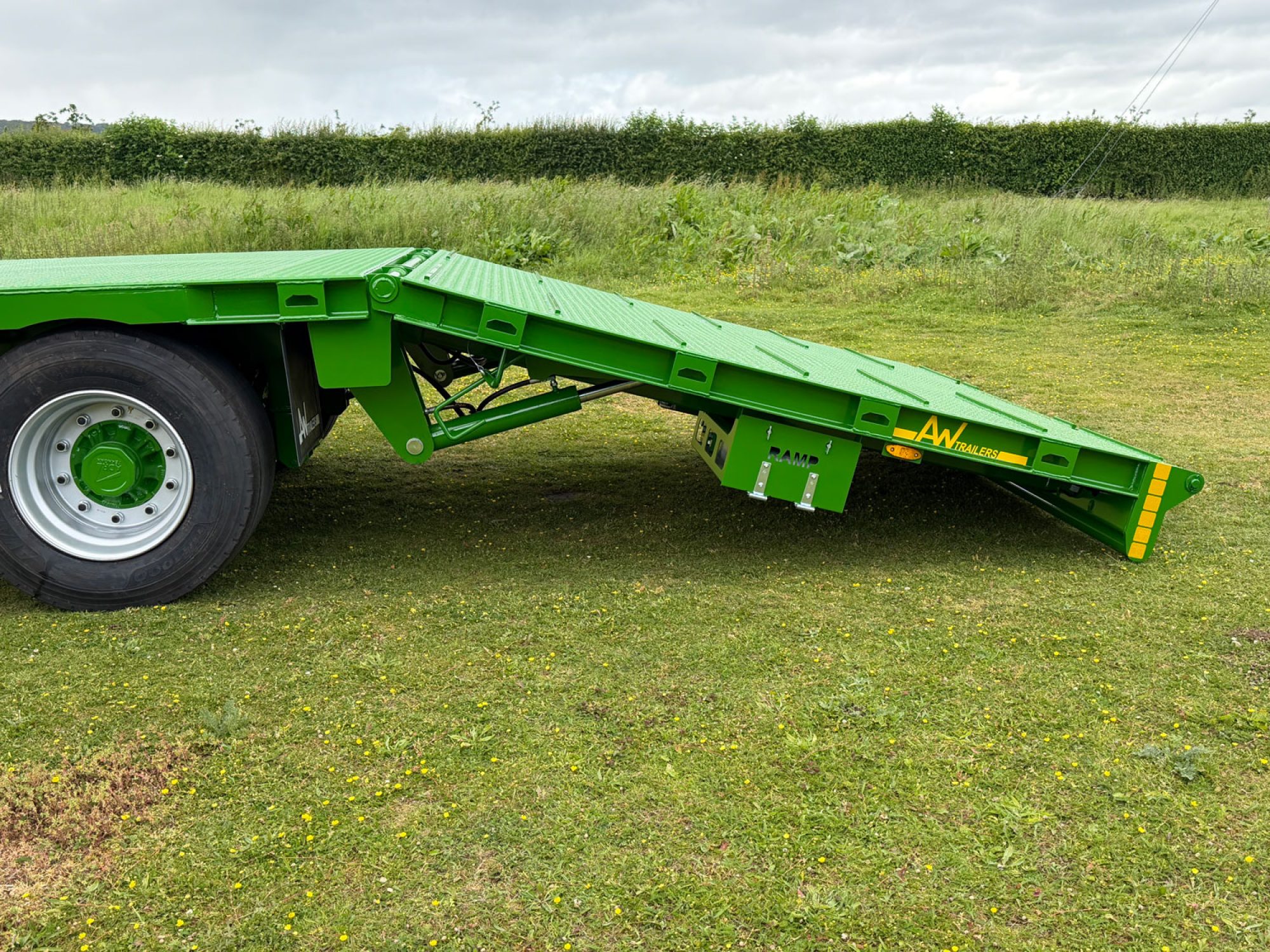

  • Hydraulic Beavertail (Minimum Trailer Length 28)
  • Fall Arrest Straps

Lighting

Extra Side Lights, Work Lights, Hi-Viz, Reverse lights
  • Extra Side Lights
  • Work Lights
  • Hi-Viz
  • Reverse Lights

Misc

Mudflaps, Side Crash Rails, Strap box, Hydraulic winch
  • Mudflaps
  • Side Crash Rails
  • Strap Box

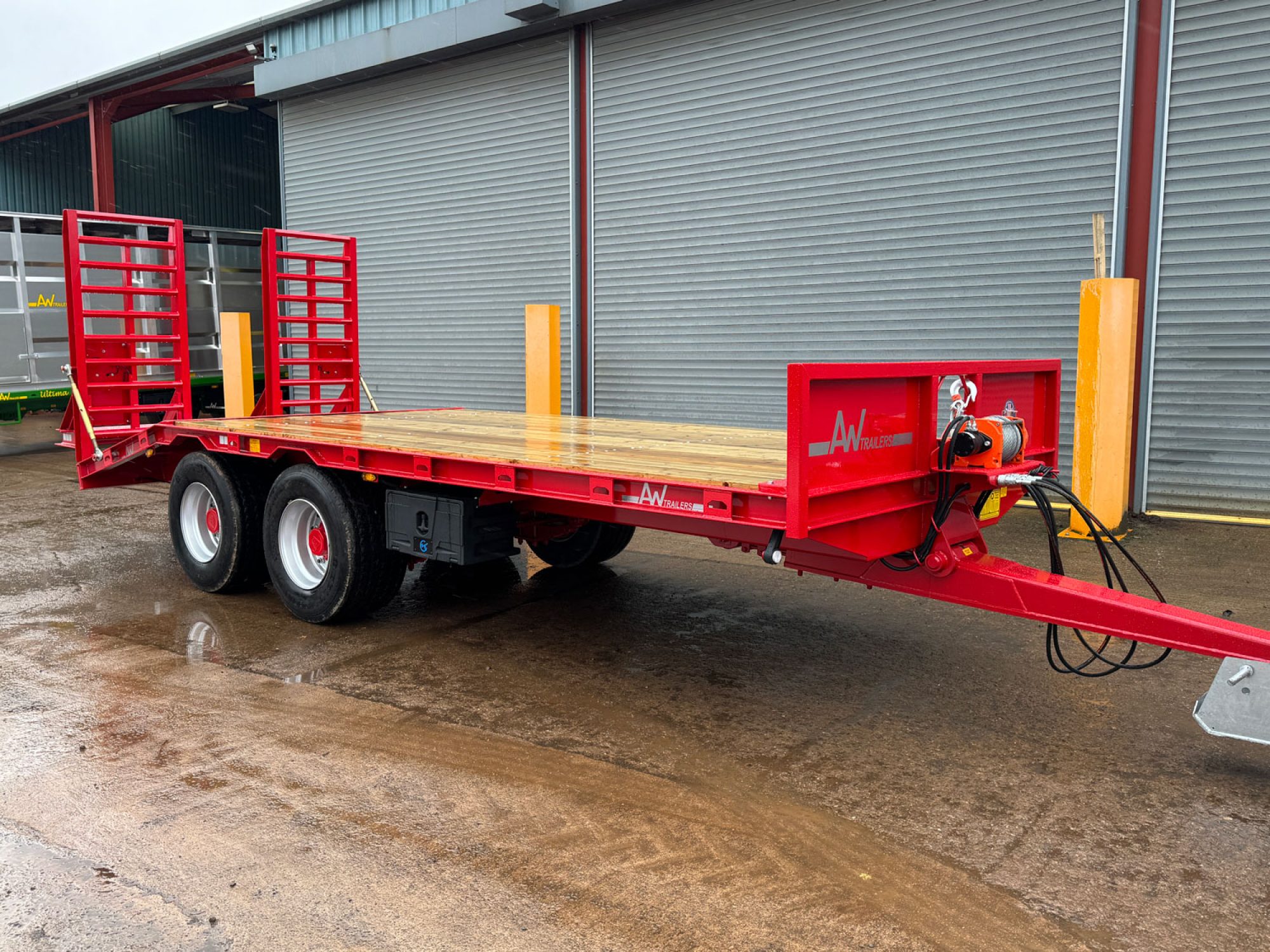

  • Hydraulic Winch

Plant Low Loaders- Downloadable file

Plant Low Loaders Specifications Table

10T PLL 12T PLL Ultima 16T PLL Ultima 18T PLL Ultima 22T PLL
Bed Length (Flat) 3660mm/12’ 4810mm/15’10” 6300mm/20’8” 7185mm/23’6” 7795mm/25’6”
Bed Length (Inc Tail) 4920mm/16’2” 6080mm/20’ 7650mm/25’ 8535mm/28’ 9145mm/30’
Floor Thickness Tread Plate 4.5mm 4.5mm 4.5mm 4.5mm 4.5mm
Floor Thickness Soft Wood 50mm/2” 50mm/2” 50mm/2” 50mm/2” 50mm/2”
Chassis 200 x 75 PFC 250 x 150 RHS 250 x 150 RHS 250 x 150 RHS 250 x 150 RHS
Axle Size 80mm 6 Stud (Tandem) 127mm 10 Stud (Tandem) 127mm 10 Stud (Tandem) 127mm 10 Stud (Tandem) 127mm 10 Stud (Tri-Axle)*
Brake Size 300 x 60 406 x 120 420 x 180 420 x 180 420 x 180
Wheel Track 2000mm/79" 2000mm/79” 2000mm/79” 2000mm/79” 2000mm/79”
Tyre Size 12.5/80 x 15.3 435/50R19.5 435/50R19.5 435/50R19.5 435/50R19.5
Wheel Position 3000mm/9’10” 3850mm/12’8” 4850mm/15’11” 5440mm/17’10” 5850mm/19’2”
O/a Length 6350mm/20’10” 7620mm/25’ 9110mm/29’11” 9995mm/32’10” 10605mm/34’10”
O/a Width 2500mm/8’2” 2500mm/8’2” 2500mm/8’2” 2500mm/8’2” 2500mm/8’2”
Bed Height 1050mm/3’5” 1070mm/3’6” 1110mm/3’8” 1110mm/3’8” 1110mm/3’8”
Unladen weight 2.5 Tonne Approx. 3.2 Tonne Approx. 4.5 Tonne Approx. 4.8 Tonne Approx. 5.3 Tonne Approx.
