Nurse Tanks

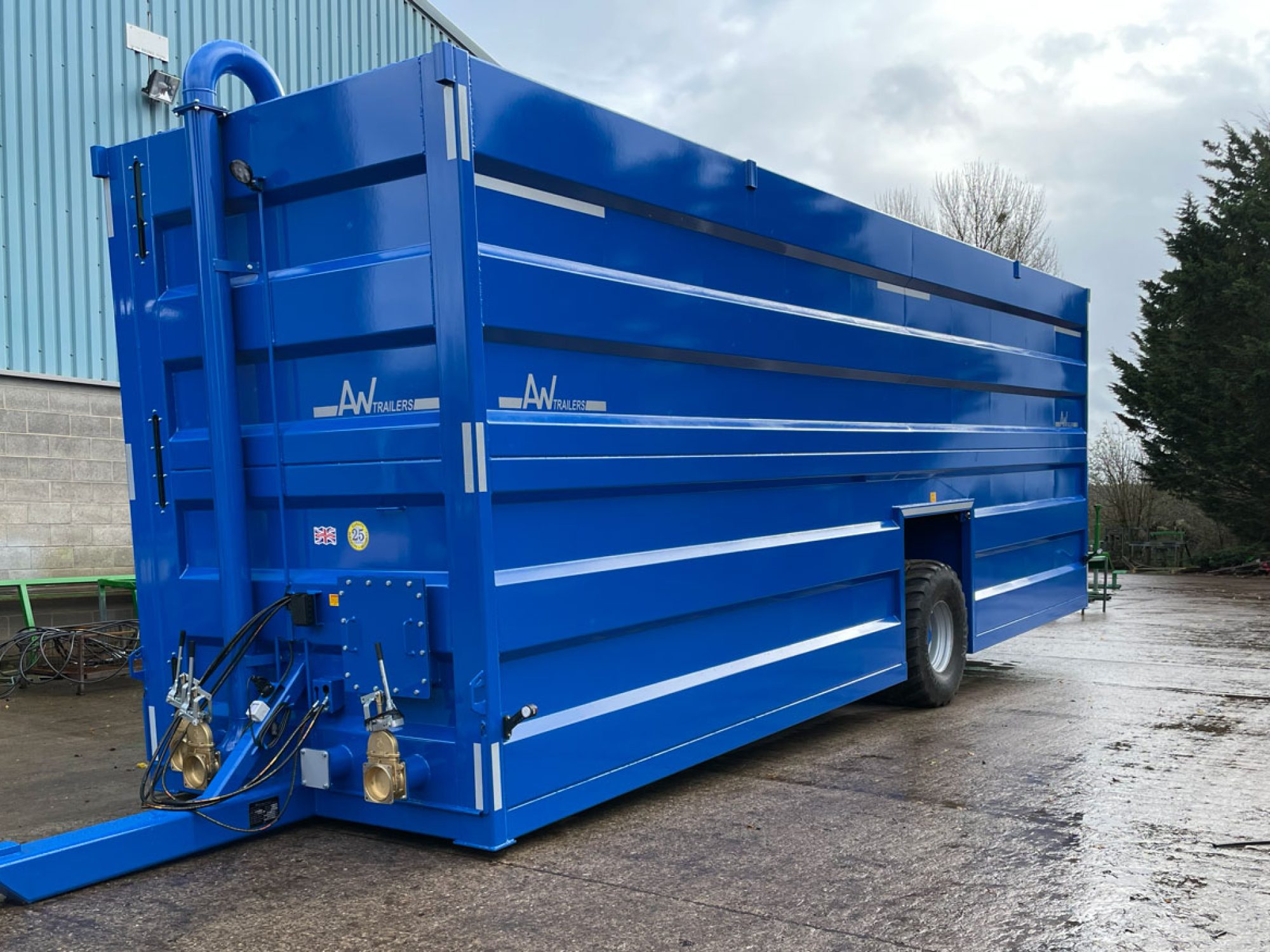

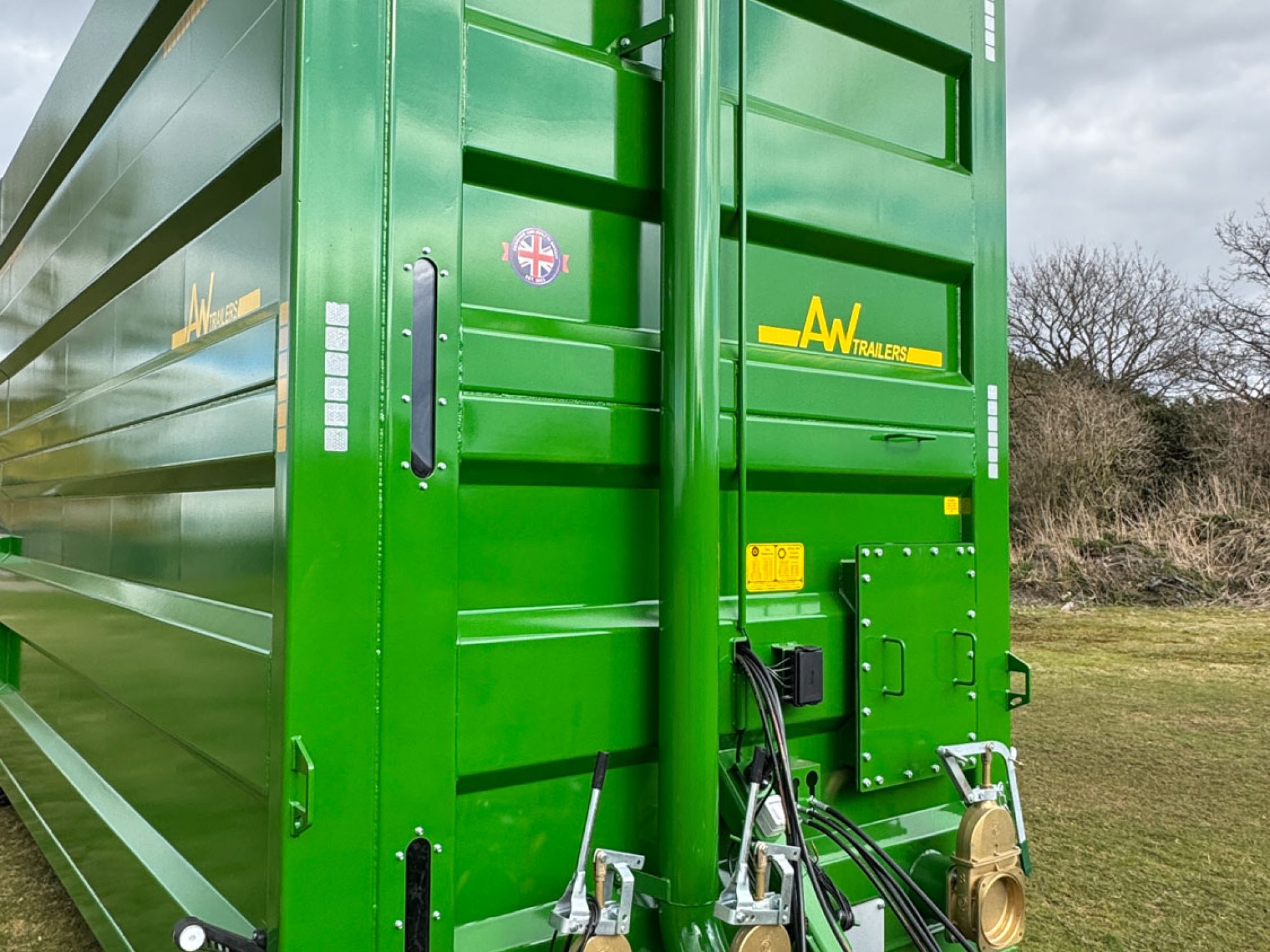

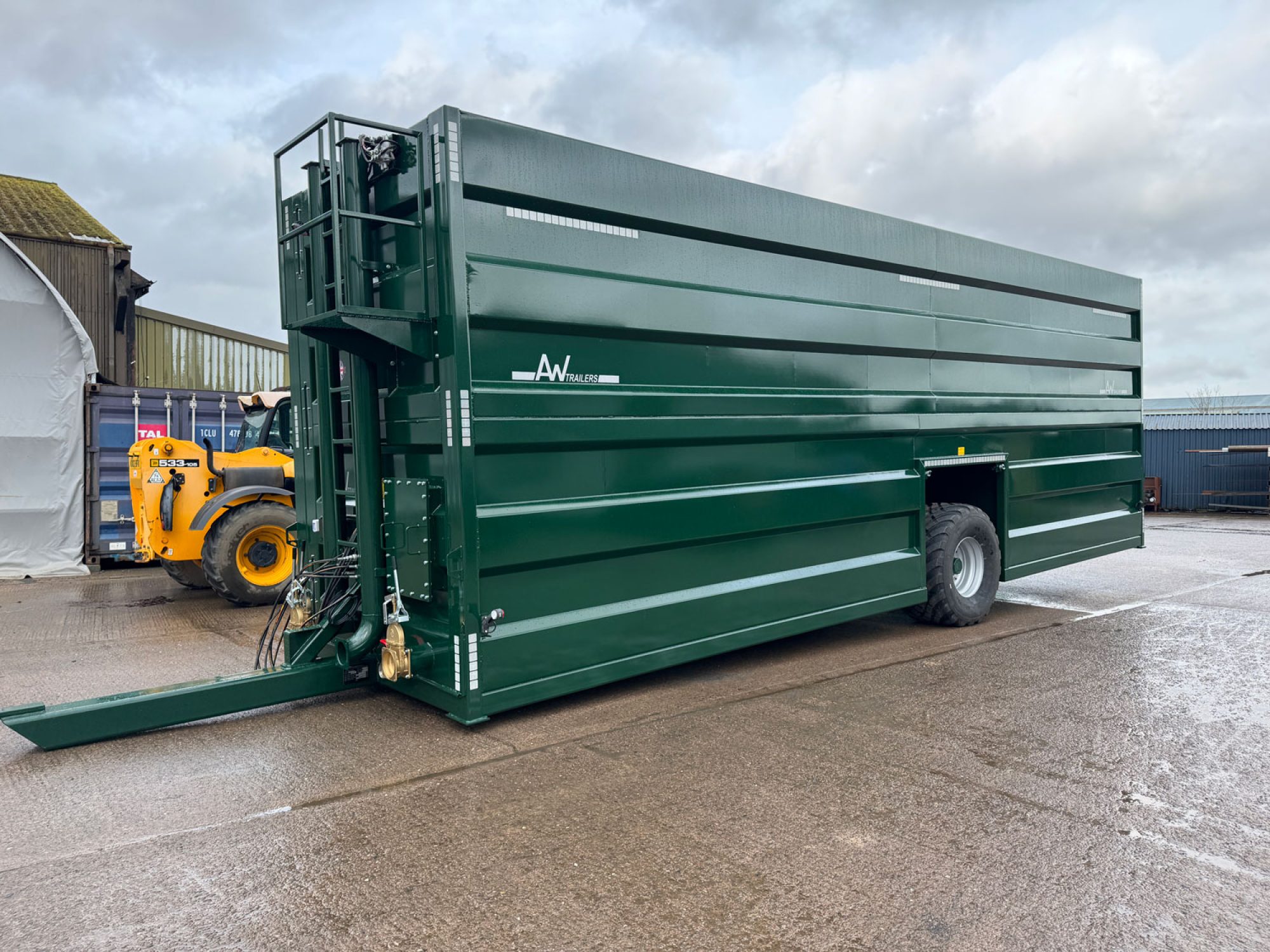

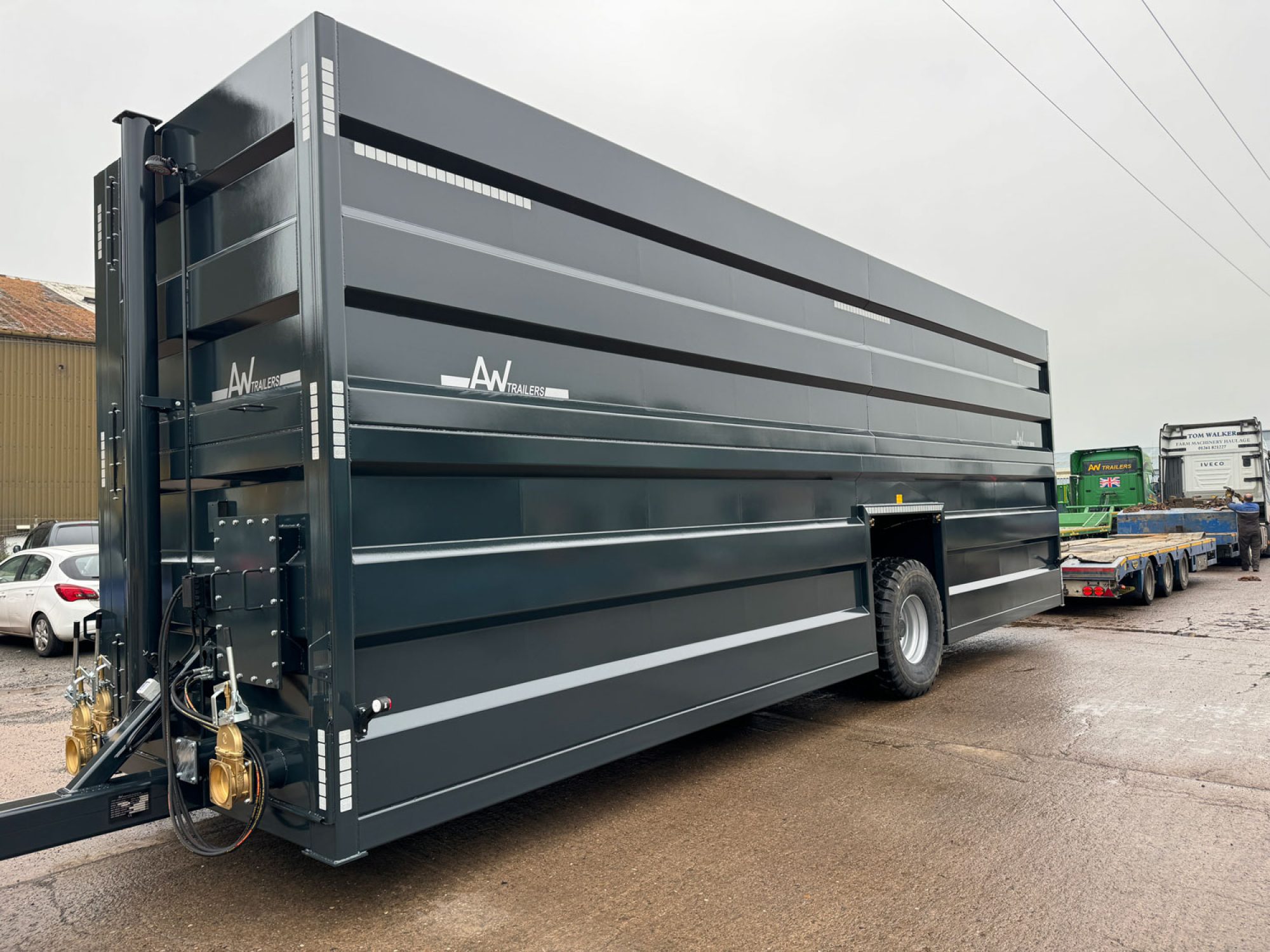

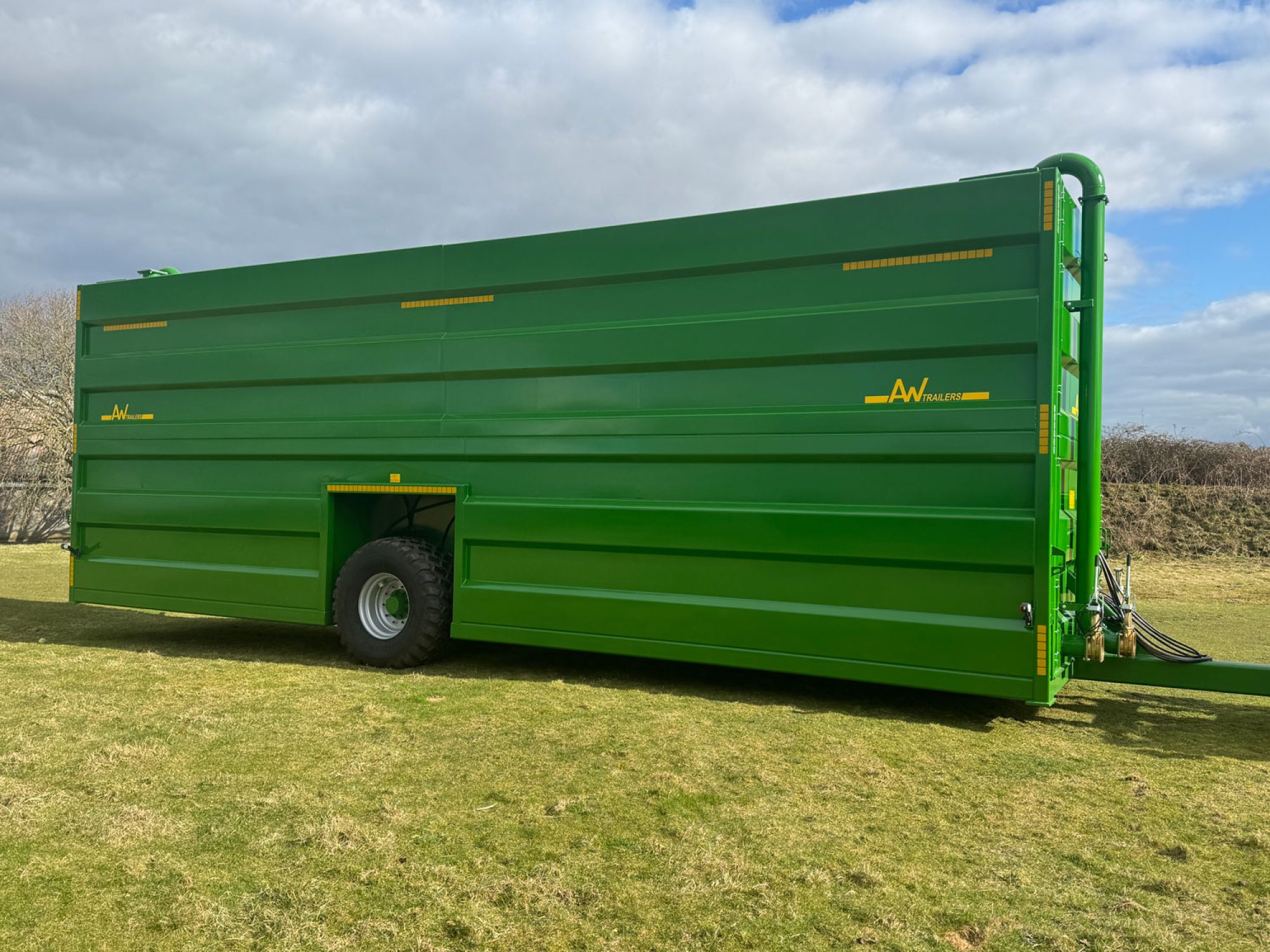

The AW Nursery Tank is designed to make handling large volumes of liquid straightforward and dependable. Available in 50, 80 and 100 cubic metre sizes, it gives you the flexibility to work with everything from slurry and digestate to dairy waste, making it a practical fit for a wide range of operations.

Built to handle tough conditions, the tank sits on a strong 10-stud commercial axle that provides stability when moving between sites. The hydraulic system makes setup simple, allowing you to lower, lift and lock the axle into place with ease, saving time and effort on the job.

When you’re ready to use it, the tank lowers flat onto the ground, giving you a solid, secure base for storage or transfer. It’s a straightforward, no-fuss solution that’s built to work as hard as you do.

Standard Features

Access Ladders Internal and External, 6” Fill Pipe, LED Beacons, Internal Bracing, LED Work Lights , Hydraulic Brakes, Sight gauge, Shot blasted Internal and External, Maintenance Free LED Lights Including Work Lights, Access and maintenence ladder, 6” Gate Valves, 560/60R22.5 Tyres, 2 Pack Primer & Top Coat, 5mm Thick Pressed Sides

Optional Extras

Internal aeration system, Upgrade to 8” diameter fill pipe, Anti-corrosive coating on interior

Nurse Tanks- Downloadable file

Nurse Tanks Specifications Table

Dimensions
Capacity 50m³/13,209 Gallons 80m³/17,600 Gallons 100m³/21,997 Gallons
Length 6770mm/22'2" 1000mm/32'8" 10300mm/33'8"
Width 2500mm/8'2" 2500mm/8'2" 3000mm/9'8"
Height 3380mm/11'1" 3380mm/11'1" 3380mm/11'1"
