Agri Low Loaders

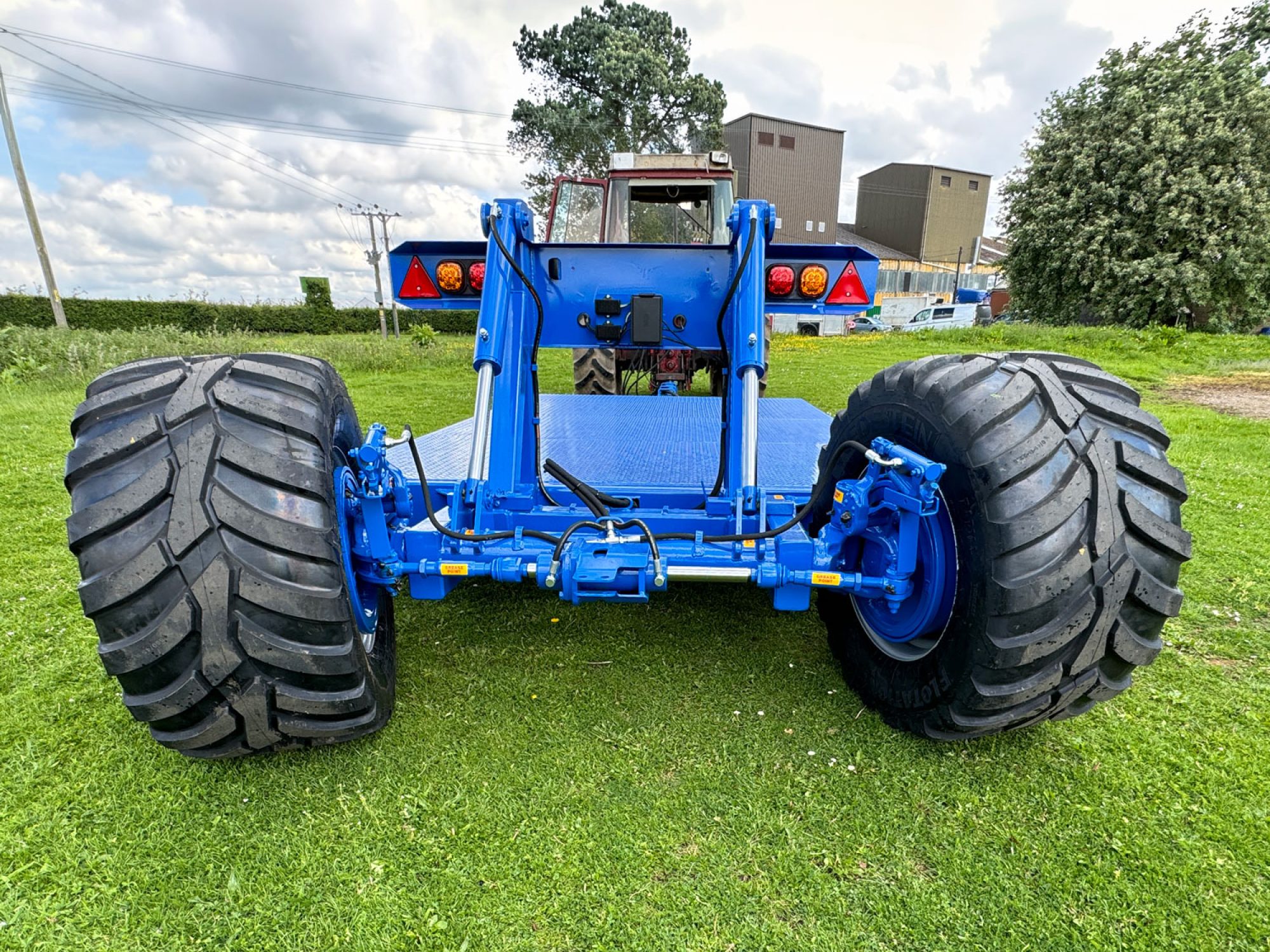

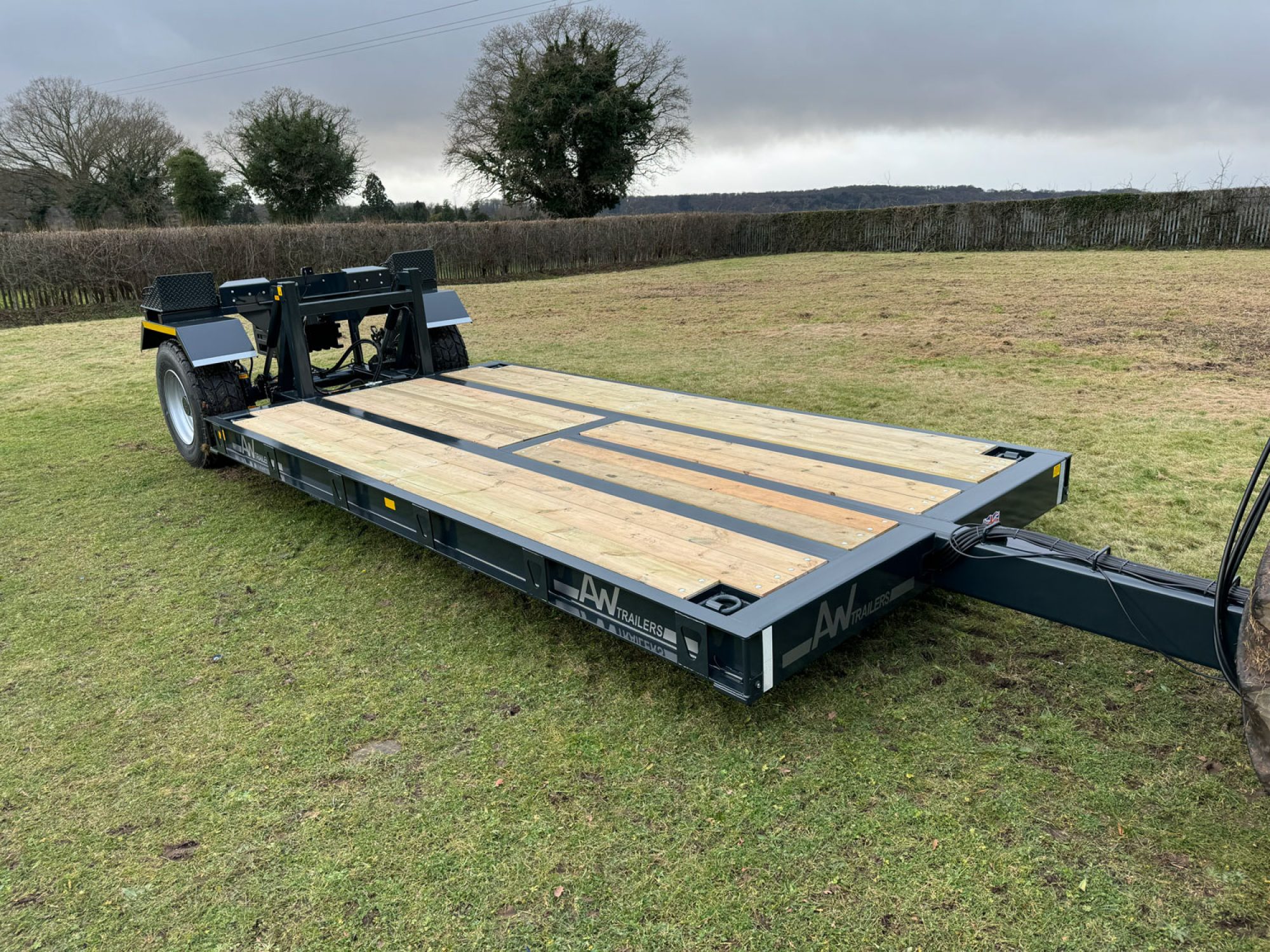

The Standard Agri Low Loader Trailer has a flat bed with a single axle at the rear which is hydraulically operated so that the bed can be lowered to the ground for easy loading and the raised for travelling. This trailer is designed to transport agricultural implements such as power harrows and drill combinations.

Specification

Hydraulic Brakes, Heavy Duty PFC side runner’s c/w laser cut lashing points, 4.5mm thick tread plate floor, Manual axle lock, LED Front and rear lights, Fully shotblasted, 2 Pack Primer & Top coat

Hydraulic Brakes
Heavy-Duty PFC Side Runners with Laser-Cut Lashing Points
4.5mm Thick Treadplate Floor
Manual Axle Lock
LED Front & Rear Lights
Fully Shotblasted
2-Pack Primer & Topcoat

Optional Extras

Softwood floor, Hardwood floor, Steering axle, Loading wedges/ ramps, Strapbox, Mudguards, Air brakes c/w manual load sensing, Hydraulic axle lock, Wheel alignment lights

Softwood Floor
Hardwood Floor
Steering Axle
Loading Wedges/Ramps
Strap Box
Mudguards
Air Brakes with Manual Load Sensing
Hydraulic Axle Lock
Wheel Alignment Lights

Agri Low Loaders- Downloadable file

Agri Low Loaders Specifications Table

	5T Low Loader	6T Low Loader	7T Low Loader
Bed Length	4270mm/14’	5485mm/18’	6400mm/21’
Bed Width	2500mm/8’2”	2500mm/8’2”	2500mm/8’2”
Chassis	150 x 100 RHS	200 x 100 RHS	200 x 100 RHS
Axle Size	70mm 6 Stud	80mm 6 Stud	80mm 6 Stud
Brake Size	300 x 60	300 x 60	350 x 60
Wheel Track	2000mm/79”	2000mm/79”	2000mm/79”
Tyre Size	12.5/80 x 15.3	12.5/80 x 15.3	385/65R22.5
O/a length	6585mm/21’8”	7900mm/25’11”	9100mm/29’10”
O/a width	2500mm/8’2”	2500mm/8’2”	2500mm/8’2”
Unladen weight	2.3 Tonne Approx.	2.8 Tonne Approx.	3.2 Tonne Approx.
