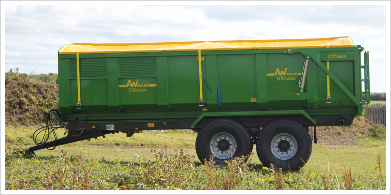

Ultima Potato & Root Trailers
|
SPECIFICATION | ||||||||
|
|
12 Tonne Ultima P&R |
14 Tonne Ultima P&R |
16 Tonne Ultima P&R |
18 Tonne Ultima P&R | ||||
|
Body length internal |
6100mm |
20ft |
6700mm |
22ft |
6700mm |
22ft |
7315mm |
24ft |
|
Body width (internal) (Taper available) |
2275mm |
7ft 6" |
2275mm |
7ft 6" |
2275mm |
7ft 6" |
2275mm |
7ft 6" |
|
Body height |
1145mm |
3ft 9" |
1145mm |
3ft 9" |
1345mm |
4ft 5" |
1345mm |
4ft 5" |
|
Floor thickness |
5mm |
5mm |
5mm |
5mm | ||||
|
Side thickness |
4mm |
4mm |
4mm |
4mm | ||||
|
Cubic capacity - |
15.9 cubic metres |
563 cubic feet |
17.5 cubic metres |
619 cubic feet |
20.5 cubic metres |
729 cubic feet |
22.4 cubic metres |
796 cubic feet |
|
Chassis |
250 x 150 RHS |
250 x 150 RHS |
250 x 150 RHS |
250 x 150 RHS | ||||
|
Axle size |
127mm diameter 10 stud |
127mm diameter 10 stud |
127mm diameter 10 stud |
127mm diameter 10 stud | ||||
|
Brake size |
420 x 180mm |
420 x 180mm |
420 x 180mm |
420 x 180mm | ||||
|
Wheel track |
1800mm |
71" |
1800mm |
71" |
1800mm |
71" |
2000mm |
6ft 7" |
|
Tyre size |
445/65R22.5 Kargo radial |
445/65R22.5 Kargo radial |
445/65R22.5 Kargo radial |
445/65R22.5 Kargo radial | ||||
|
O/all length |
7730mm |
25ft 3" |
8330mm |
27ft 4" |
8330mm |
27ft 4" |
8945mm |
29ft 4" |
|
O/all width |
2455mm |
8ft 1" |
2455mm |
8ft 1" |
2455mm |
8ft 1" |
2455mm |
8ft 1" |
|
O/all height |
2525mm |
8ft 3" |
2525mm |
8ft 3" |
2740mm |
9ft |
2780mm |
9ft 2" |
|
Max tipped height |
6610mm |
21ft 8" |
7070mm |
23ft 2" |
7485mm |
24ft 6" |
7980mm |
26ft 2" |
|
Unladen weight |
5.2 Tonne approx |
5.5 Tonne approx |
5.7 Tonne approx |
6.1 Tonne approx | ||||
The Ultima Potato & Root Trailers feature all the Ultima upgrades and also have a full width laser cut front window with shallow top cross member to give maximum visibility fromt the tractor cab, a side window along the front 2 panels on the left hand side with 12mm diameter horizontal bars and all interior features are fitted with rounded edges giving a super smooth interior to minimise crop damage.
Ultima features include :-
- New commercial running gear -
parabolic spring suspension, 10 stud high speed axles, 420 x 180 brake with hydraulic load sensing, 445/65R22.5 Kargo Radial tyres (flotations available) - Full steel mudguards with mud flaps
- Commercial LED road lighting using maintenance free LED lamps
- Sprung drawbar -
multi- adjustable height positions with 60mm diameter phosphor bronze bushes and chrome pivots - Premium paint finish -
choice of colour, shotblasted then painted with 2 pack primer and 2 pack top coat to give a hard wearing gloss finish
