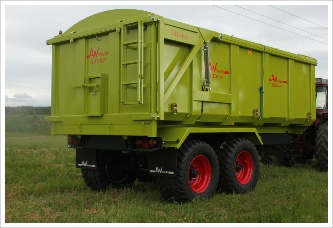

Ultima Monocoque Trailers
|
SPECIFICATION | ||||||||
|
|
12 Tonne Ultima Monocoque |
14 Tonne Ultima Monocoque |
16 Tonne Ultima Monocoque |
18 Tonne Ultima Monocoque | ||||
|
Body length internal |
5505mm |
18ft |
6100mm |
20ft |
6700mm |
22ft |
6700mm |
22ft |
|
Body width (internal) (Taper available) |
2275mm |
7ft 6" |
2275mm |
7ft 6" |
2275mm |
7ft 6" |
2275mm |
7ft 6" |
|
Body height |
1345mm |
4ft 5" |
1345mm |
4ft 5" |
1345mm |
4ft 5" |
1525mm |
5ft |
|
Floor thickness |
5mm |
5mm |
5mm |
5mm | ||||
|
Side thickness |
4mm |
4mm |
4mm |
4mm | ||||
|
Cubic capacity - |
16.8 cubic metres |
597 cubic feet |
18.7 cubic metres |
663 cubic feet |
20.5 cubic metres |
729 cubic feet |
23.2cubic metres |
825 cubic feet |
|
Chassis |
250 x 150 RHS |
250 x 150 RHS |
250 x 150 RHS |
250 x 150 RHS | ||||
|
Axle size |
127mm diameter 10 stud |
127mm diameter 10 stud |
127mm diameter 10 stud |
127mm diameter 10 stud | ||||
|
Brake size |
420 x 180mm |
420 x 180mm |
420 x 180mm |
420 x 180mm | ||||
|
Wheel track |
2000mm |
6ft 7" |
2000mm |
6ft 7" |
2000mm |
6ft 7" |
2000mm |
6ft 7" |
|
Tyre size |
445/65R22.5 Kargo radial |
445/65R22.5 Kargo radial |
445/65R22.5 Kargo radial |
445/65R22.5 Kargo radial | ||||
|
O/all length |
7125mm |
23ft 3" |
7730mm |
25ft 3" |
8330mm |
27ft 4" |
8945mm |
29ft 4" |
|
O/all width |
2455mm |
8ft 1" |
2455mm |
8ft 1" |
2455mm |
8ft 1" |
2455mm |
8ft 1" |
|
O/all height |
2725mm |
8ft 11" |
2725mm |
8ft 11" |
2740mm |
9ft |
2780mm |
9ft 2" |
|
Max tipped height |
6450mm |
21ft 2" |
6910mm |
22ft 8" |
7470mm |
24ft 6" |
7980mm |
26ft 2" |
|
Unladen weight |
5.0 Tonne approx |
5.3 Tonne approx |
5.7 Tonne approx |
6.1 Tonne approx | ||||
Ultima features include :-
- New commercial running gear -
parabolic spring suspension, 10 stud high speed axles, 420 x 180 brake with hydraulic load sensing, 445/65R22.5 Kargo Radial tyres (flotations available) - Full steel mudguards with mud flaps
- Commercial LED road lighting using maintenance free LED lamps
- Sprung drawbar -
multi- adjustable height positions with 60mm diameter phosphor bronze bushes and chrome pivots - Premium paint finish -
choice of colour, shotblasted then painted with 2 pack primer and 2 pack top coat to give a hard wearing gloss finish
The Ultima Monocoque Trailers feature all the Ultima upgrades including a 5mm thick
floor with extra floor supports and 4mm thick sides which are fully welded. A range
of optional extras is available including air brakes with load sensing, ABS, silage
sides and side to side roll-
